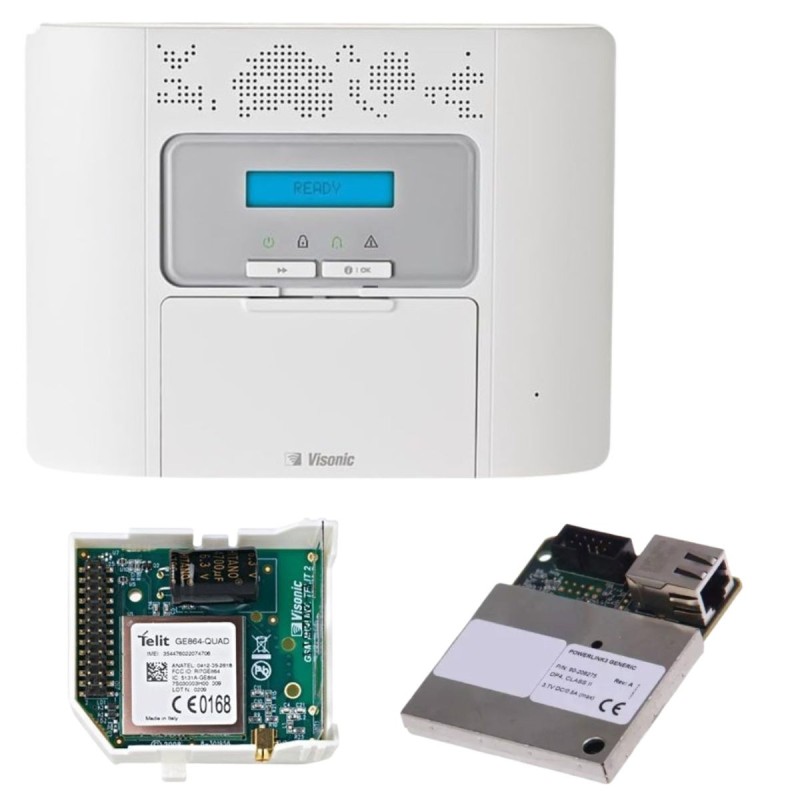

Visonic PowerMaster 30 V20.2 Central alarm IP / GSM NFA2P

Central alarm Visonic Powermaster 30 IP NFA2P

The alarm center integrates a PSTN and IP telephone transmitter

We also program your plant free of charge on request

The power plant comes with its power cable.

Your Visonic alarm system is guaranteed for 5 years without supplement!

The alarm centre can be installed both on a PSTN telephone line (France Telecom) and on a digital line (ADSL subscription).

Thanks to the voice call the PowerMaster 30 control panel will warn you on your phone or whether you are of an alarm triggering

Thanks to the PowerLink3 IP transmitter you can control your PowerMaster control panel with your smartphone thanks to the VisionicGO application.

The PowerMatser 30 IP/GSM control panel is sold with a PowerLink3 card and transmitter installed.

The PowerLink3 IP transmitter and the GSM transmitter are compatible with any operator and integrated by our technical service in the control panel.

The PowerLInk3 transmitter once connected to your ADSL box allows the use of the VisionicGO smartphone application

The WDCMA-3G PG2 transmitter will be used as a backup line in case of power outage or telephone line

Core Features Visonic PowerMaster 30 V20.2:

• NFA2P approved

• Support for over 120 wireless devices

• Up to 64 zones

• 48 user codes

• Up to 32 keyboards, 32 remote controls, 8 sirens, 4 repeaters

• Extended emission range up to 2000m

• Battery life between 5 and 8 years

• Remote module radio I/O 48/16 max.

• A wide range of PowerG devices for every application

• SirenNet: uses smoke detector buzzers for all alarms

• 128bit FHSS/ARMT/AES Technologies

All devices are configured from the panel

Adaptable transmission power

Special registration button for each device simplifies recording procedures

Custom configuration templates allow devices to be configured collectively

Signal quality indication

• The powerful diagnostic tool shows RF link quality based on statistics from the last 24 hours and bidirectional measurements on demand, displaying immediate problems and enabling installation verification during system setup at the customer's site.

• Conducting remote walking tests by anyone in the house

• PGM output activation on temperature/brightness/presence detection value

• Time of attendance or absence management

• Armament with timed open area

• Remote configuration and diagnostics

• Analog reporting formats: SIA, Contact ID, Scancom; IP: SIA IP, Visonic PowerNet

• Communication PSTN, GSM, GPRS, IP

• Unique accessibility and performance

• Frequency hoppings: 8 / 4 / 50

• 24-hour battery backup – 7.2V, 1,300mAh, NiMH; 48 hours – 9.6V, 1,800mAh, NiMH

• Radio frequencies 433-434 / 868-869 / 912-919MHz

• Internal or external power supply according to local regulations

• Dimensions: 266 x 206 x 63mm

• Weight: 1.44Kg
