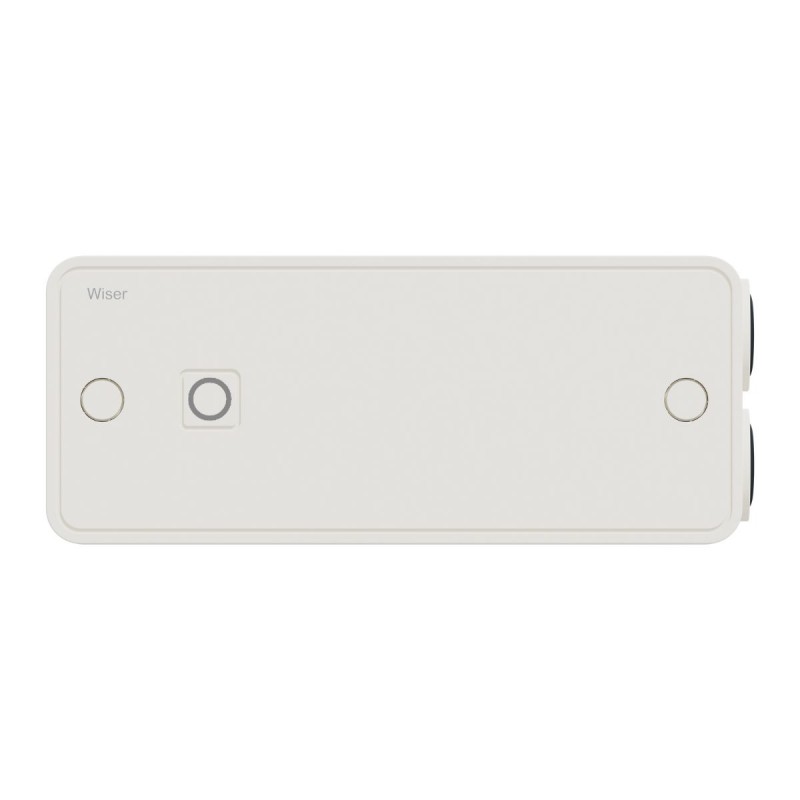

SCHNEIDER CCTFR6700 electric heating actuator 16A Zigbee pilot wire

The CCTRF6700 actuator is used to control a radiator or an electric water heater.

Wiser™ connected heating puts technology at the service of ease of use and installation in new, old and collective housing.

Controlling, adjusting or starting the heating when winter arrives is done in a few clicks on a smartphone via the Wiser Home app.

And setting up and setting the heating is just as easy via Wiser Home.

And if the accommodation is equipped with several types of heating

– a boiler plus electric heaters in the bedrooms for example

–, Wiser Home makes it possible to manage everything in a single, ergonomic and intuitive environment.

Features SCHNEIDER CCTFR6700 electric heating actuator 16A Zigbee pilot wire:

• Controls the radiator(s) or electric water heater(s) it is connected to

• Retransmits orders to other equipment to expand the system's field of action

• Control type: ON / OFF (16 A max) or via a pilot wire (ON = 0 V, OFF = 230 V negative half-wave)

• Wireless communication (ZigBee) with WiFi gateway and/or room thermostat

• Power supply: 230 Vac on terminal block

• Maximum switching power: 3000 W

• Rated impulse voltage: 4 kV

• Power consumption: 7.3 W (to be added to the consumption of the controlled heating)

• Rated output current: 16 A (resistive load) 3 A (inductive load)

• Rated output current on the pilot wire: 0.5 A max

• Temperature set :

• setting range: from 5 to 30°C

• step adjustment: 0.5°C

• Wireless signal:

• frequency: 2.4GHz

• range: up to 30 m in open field

• Dimensions: 67 x 162 x 25mm

• Colour: white RAL 9016
