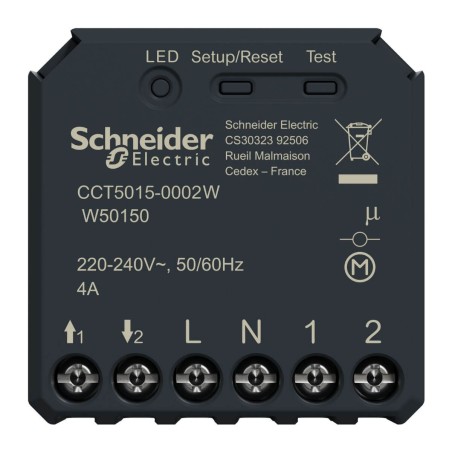

Wiser CCT50150002W Zigbee roller shutter module

The Zigbee Wiser CCT50150002W roller shutter module is used to control a blind/roller shutter motor equipped with a final position switch.

The relay contacts are mechanically interlocked against each other to prevent simultaneous triggering of two relay outputs.

The Zigbee Wiser CCT50150002W roller shutter module should not be used to control security relevant applications.

Order Options

House order:

To control the roller shutter module Zigbee Wiser CCT50150002W is used to control a blind/roller shutter motor equipped with an end position switch.

The relay contacts are mechanically interlocked against each other to prevent simultaneous triggering of two relay outputs.

The Zigbee Wiser CCT50150002W roller shutter module should not be used to control security relevant applications.

Order Options

Home control: To control the module in your home via the Wiser app, you will need the Wiser gateway.

Room Control: To control the module through other Wiser devices, it can be paired.

Wiser devices must be in the same Zigbee network.

Direct operation: The Zigbee Wiser CCT50150002W roller shutter module can always be controlled directly on site.

To do this, you can connect up to 10 double mechanical push buttons.

Functions:

• Mechanical and electronic locking

• Setting a timer or schedule (via app)

• Execution time definition (via application)

Features Wiser CCT50150002W Zigbee roller shutter module:

• Rated voltage 220-240 V AC, 50/60 Hz

• Rated current 4 A, cosφ = 0.6 - 1.0

• Shutter channel 1 mechanical and electronic contact, mutually interlocked

• Standby Maximum 0.3W

• Operating temperature 0 ºC to 35 ºC

• Neutral Conductor Required

• Connection terminals Maximum 2 x 2.5 mm2, solid or twisted types Extension connection Maximum 10 mechanical push buttons

• Length of all cable sections

• Maximum 50m for 3-wire NYM cable

• Fuse protection

• 16A circuit breaker

• Operating frequency 2405 - 2480 MHz

• power max. transmitted radio frequency <10 mW

• Protection class IP20

• Product dimensions (H x W x D) 43 x 43 x 22 mm

• Dimensions of the wall box | The minimum depth of the wall box must be 26 mm. Zigbee 3.0 certified
