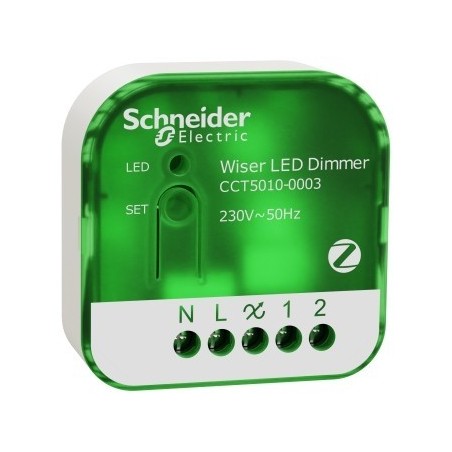

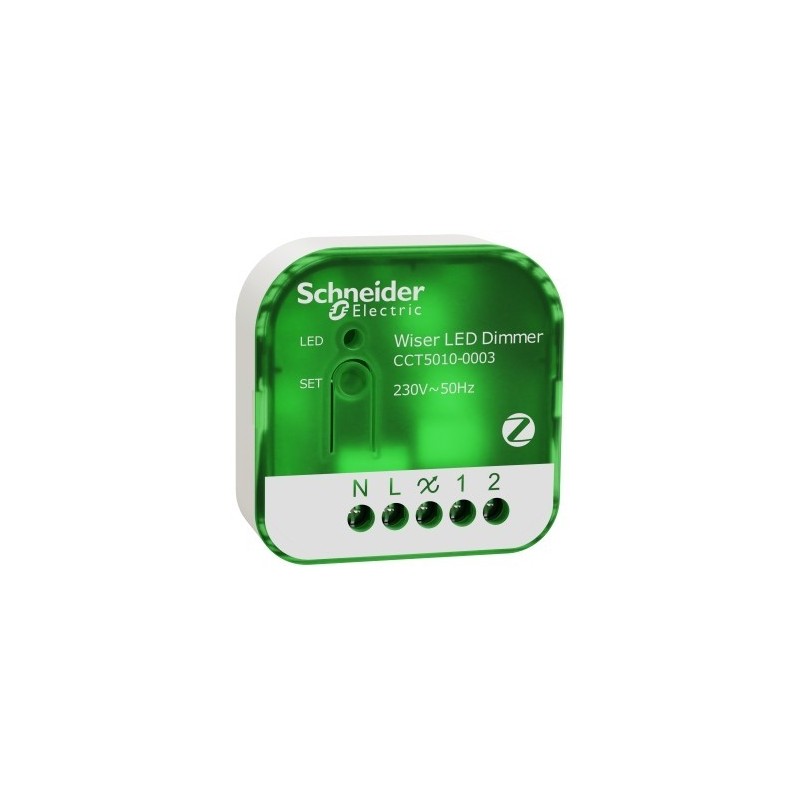

Schneider Wiser CCT5010-003 - Zigbee LED dimmer module

The Schneider Wiser CCT5010-003 module is an LED dimmer module compatible with Zigbee technology.

The Zigbee CCT5010-003 module allows the light intensity of LED lamps to be controlled via a wireless network, providing a convenient solution for managing the lighting in your home or office.

Characteristics Schneider Wiser CCT5010-003 - Zigbee LED dimmer module:

• Product Brand: Schneider Electric

• Range: Wiser

• Type of product or equipment: Connected drive

• Related Accessories: Wiser hub generation 1

• Mobile App Name: Wiser by SE

• Color shade: Green White

• Charging Type:

• LED lamp: 0...200 W at 230 V AC (RC LED mode)

• Incandescent lamp: 0...300 W at 230 V AC

• 230 V halogen lamps: 0...200 W to 230 V AC

• Halogen lamp with standard electronic transformer: 0...300 W at 230 V AC

• Drive Type: Trailing Edge

• Dimmer Application: Light

• Drive control

• Local control by push button

• Remote control

• Memory function

• [EU] Rated Operating Voltage: 220...240 V AC 2 Phase

• Standby power: < 0.4 W

• Fuse rating to be paired: 16 A

• Type of protection

• Overheat protection

• Short circuit protection

• Automatic overload protection

• Surface Treatment: Untreated

• Local signalling: LED (green/red/orange)programming indication:

• Order Type

• Local control control of the variation +/-

• Remote control via auxiliary push button, on/off switch function

• Remote control via auxiliary push button, dimming control +/-

• Remote Control Wiser App Function On/Off Switch

• Remote Control App Wiser Variation Control +/-

• Remote Control App Wiser Device Programming

• Software Name

• Wiser by SE App: control of the variation range

• Wiser by SE App: Programming the switching time

• Wiser by SE App: Activate Timer Mode

• Wiser by SE App: dimming mode management

• Wiser by SE App: Enable brightness/memory function

• Wiser by SE App: Enable Timer/Overflow Time Mode

• Wiser by SE App: upgrade firmware

• Maximum number of connected devices: 10 Zigbee 3.0:

• Connected auxiliaries: 10 auxiliary push buttons maximum

• Cable length: 50 m

• Configuring the wiring

• 3-wire with neutral

• No neutral

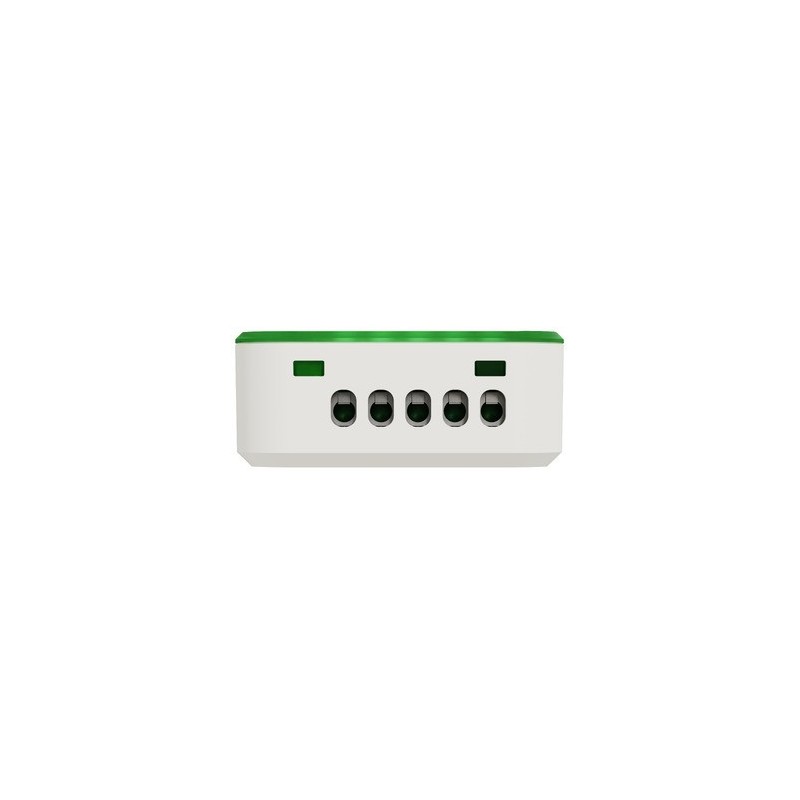

• Connection: Screw terminal

• Terminal Clamping Capacity:

• 1,5… 2.5 mm² for rigid cable(s)

1,5… 2.5 mm² for Rigid Twisted Multistrand Cable(s)

Mounting bracket:

Wall box

DIN rail with accessory

Installation Box

Device Mounting: Flush

Installation Type: Indoor Installation

Mounting depth: 25 mm

Depth: 18.5 mm

Width: 45 mm

Height: 45 mm

Product weight: 0.023 kg

Environment

Operating Temperature Range: -5... 35 °C

IP protection level: IP20

Impact resistance IK: IK02

Environment Feature: Indoor Use

Operating altitude: <= 2000 m

Product certifications: CE, RoHS, Zigbee 3.0
