R9M70 Wiser PowerTag - 3P + N Tri Wireless Measurement Sensor
€98.28
VAT included

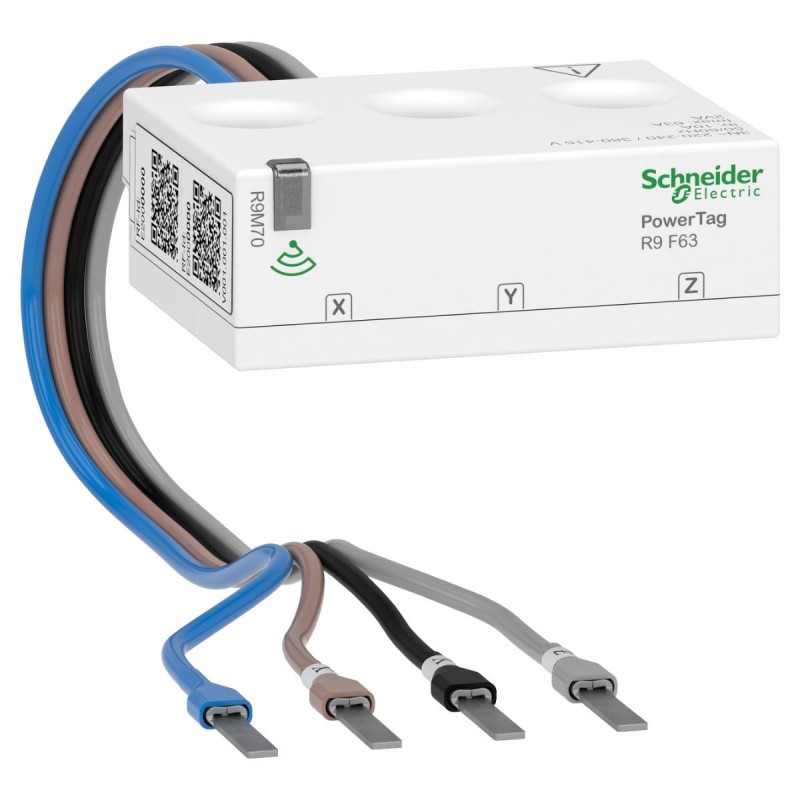

R9M70 Wiser PowerTag - 3P + N Tri Wireless Measurement Sensor
The PowerTag is a wireless current measurement sensor for Resi9 3P+N electrical panels, up to 63A. Combined with the Wiser gateway, it provides accurate real-time circuit monitoring and diagnosis, with voltage loss alerts. Compliant with international standards and Green Premium certified, it is ideal for energy management.
Garanties sécurité(à modifier dans le module "Réassurance")
Politique de livraison(à modifier dans le module "Réassurance")
Politique retours(à modifier dans le module "Réassurance")
R9M70 Wiser PowerTag - 3P + N Tri Wireless Measurement Sensor
The PowerTag R9M70 is a wireless current measurement sensor designed for accurate, real-time monitoring of 3P+N three-phase electrical circuits up to 63A, ideal for Resi9 electrical panels.
Highlights of the R9M70 PowerTag:
- Real-time monitoring: Accurate measurement of active energy produced and consumed, with voltage loss alerts.
- Easy Installation: Easily mounts to the phase cable, with wireless communication via Zigbee.
- Eco-friendly and certified: Green Premium certified for long-lasting, eco-friendly performance.
The PowerTag R9M70 is an innovative current measurement sensor designed to be installed in the electrical panel, dedicated to 3P+N three-phase Resi9 devices. This sensor, rated at 63A or less, offers an advanced solution for power management, load monitoring, and power availability. When combined with the Wiser Gateway, it enables accurate monitoring and diagnosis of electrical circuits, providing real-time measurements of active energy produced and consumed.
In the event of a power outage, the PowerTag sends a voltage loss alarm as well as the current value per phase before being de-energized, ensuring optimal safety. It communicates wirelessly with the Wiser gateway via Zigbee and can be mounted easily on the top or bottom of the protection device. Compliant with international and national standards, this product is Green Premium certified, ensuring long-lasting and environmentally friendly performance. The PowerTag R9M70 is available in a single-phase version and consists of a high-gloss white housing (RAL 9003).
Characteristics:
- Type: Wireless current measurement sensor
- Application: Resi9 3P+N electrical panels
- Calibre: Up to 63A
- Installation: On the phase cable, mounted on the top or bottom of the protection device
- Communication: Wireless, via Zigbee
- Size: H19.5mm x W54mm x D43mm (with sensing element)
- Colour: White (RAL 9003)
- Standards and approvals: CE, IEC 61557-12, IEC 61010-1, IEC 61010-2-030, IEC 61326-1, ETSI EN 300 328, ETSI EN 301 487-1, 2014/53/EU
- Ecolabel: Green Premium
- Additional features: Voltage loss alarm, current measurement per phase before power off
- Compatibility: Wiser gateway required for monitoring and diagnostics
- Availability: Single-phase version also available
Follow this guide: How to install a PowerTag energy sensor on your electrical panel?
R9M70
5 Items
Data sheet
- Functions
- Power consumption
Specific References
- EAN13
- 3606489524821
