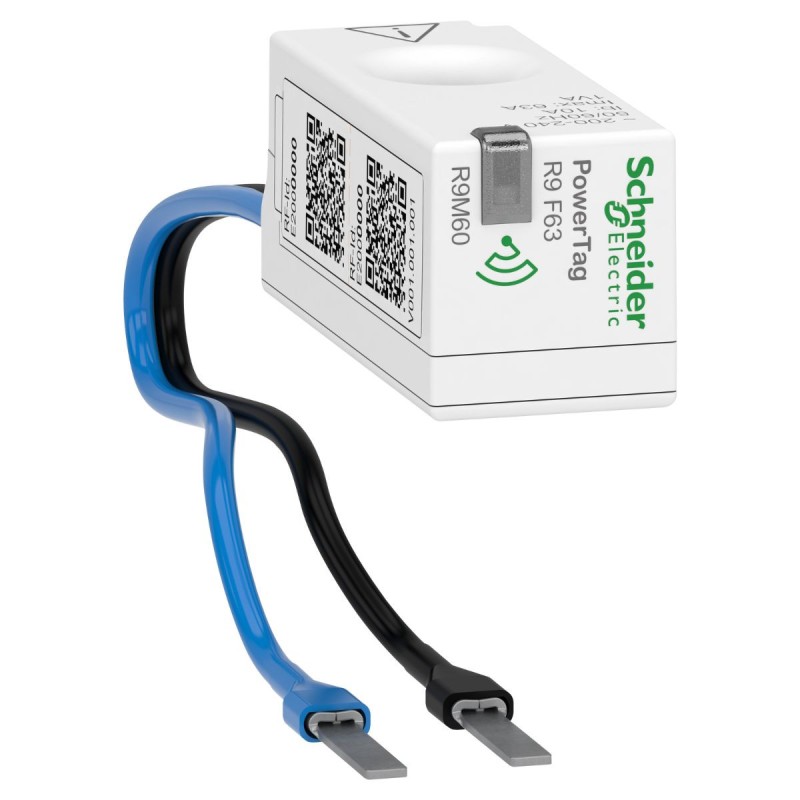

R9M60 Wiser Energy PowerTag - single-phase wireless measurement sensor

The Wiser Energy PowerTag R9M60 is a wireless measurement sensor designed to monitor energy consumption accurately and efficiently in single-phase installations. This innovative device is part of Schneider Electric's Wiser Energy range, which is renowned for its advanced energy management solutions.

Highlights of the Wiser Energy PowerTag:

• Simplified Wireless Installation : The R9M60 PowerTag uses wireless technology, eliminating the need for complex wiring. This feature allows for quick and flexible installation, reducing the cost and effort associated with integration into existing electrical systems.

• Accurate, real-time monitoring : This sensor provides accurate, real-time data on energy consumption. Through integration with the Wiser Home app, users can continuously monitor the energy consumed by their devices, allowing for better management and optimization of energy usage.

• Compact Design and Easy Integration : The PowerTag R9M60 is designed to be installed directly on circuit breakers, minimizing the space required in the electrical panel. Its compact design allows for easy integration into existing electrical systems without the need for major modifications.

The PowerTag R9M60 is a current measurement sensor specifically designed for Resi9 1P+N devices with a gauge of 63A or less. This sensor must be paired with the Wiser gateway to ensure accurate monitoring and comprehensive circuit diagnosis down to the load level. It is ideal for power management applications, load monitoring, and power availability.

This device offers real-time measurements of the active energy produced and consumed. In the event of a power outage, it sends a voltage loss alarm and communicates the current value per phase before being de-energized, ensuring constant and reliable monitoring.

The PowerTag R9M60, in bright white (RAL 9003), is easily installed on the phase cable (red) of the circuit to be monitored and can be mounted on the top or bottom of the protection device. It communicates wirelessly with the Wiser gateway via the Zigbee protocol.

This sensor complies with international and national standards, including CE, IEC 61557-12, IEC 61010-1, IEC 61010-2-030, IEC 61326-1, ETSI EN 300 328, ETSI EN 301 487-1, 2014/53/EU. Green Premium certified, it is committed to sustainable and environmentally friendly performance.

Features of the Wiser Energy PowerTag:

• Poles: 1P+N
• Max Current: 63A
• Mobile App Name: Wiser by SE, Wiser Home
• Starting Current: 40mA
• Basic current : 10A
• Current Saturation: 130A
• Product Destination: Electrical Panel
• Transmission medium: Radio frequency 2.4... 2.4835 GHz comply with IEEE 802.15.4
• Maximum Emission Support: 10mW

Find out how to install a Power Tag energy sensor on your electrical panel here: https://www.youtube.com/watch?v=Q79X1py2f-Q
