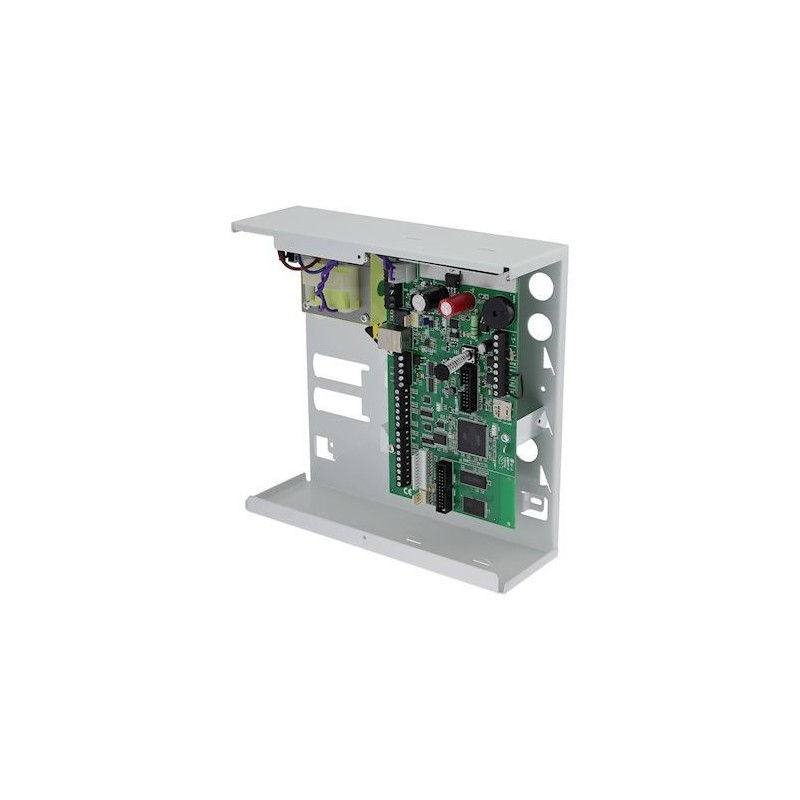

Eaton I-ON20EU - 10-zone wired alarm panel web integrated metal box

The I-ON20EU alarm panel is a 10-zone wired control panel that can be extended to 20 (wired or radio).

The I-ON20EU alarm panel is rated for small installations, its integrated IP connection and compatibility with the SecureConnect™ app make it a remarkable and cost-effective communicating security system.

• Standard use without IP possible

• Bus Performance 5 Keyboards and an extension

• Expandable to 20 zones per bus module

• 20 users: code, badge and remote control

• SecureConnect™ App

• A complete range of control keypads

• Eaton Cloud for Remote Maintenance

• IP remote monitoring as standard

EATON I-ON 20 EU central alarm features:

• i-on20EU control panel Description Provide keyboard and battery 12V 7Ah ref: SCA00001 extra charge

• Grade 2 EN50131 Compliance

• Wired 10 central areas

• Total Area Capacity 20

• Number of Buses 1

• Number of users 20

• Number of outputs: 3 voltage outputs on terminal blocks and 12 outputs on connectors

• Number of partitions 5

• Number of partials per partition 3 memory events 1500

• Number of bus extensions max 20

• SD card or Cloud update

• 1A Power Supply

• Ethernet Transmitters

• Optional PSTN, GSM or 4G

• Secure SSL/TLS IP transmission - with SecureConnect™ App or Cloud

• Battery capacity 7Ah

• SD card connector

• Optional SD card for image, update and copy/backup programming

• Dimensions 239mm (H) x 250mm (W) x 90mm (D)

• Weight 2.8Kg - without battery

• Operating Temperatures: Environment Class: 2 -10°C to 55°C, 93% humidity
