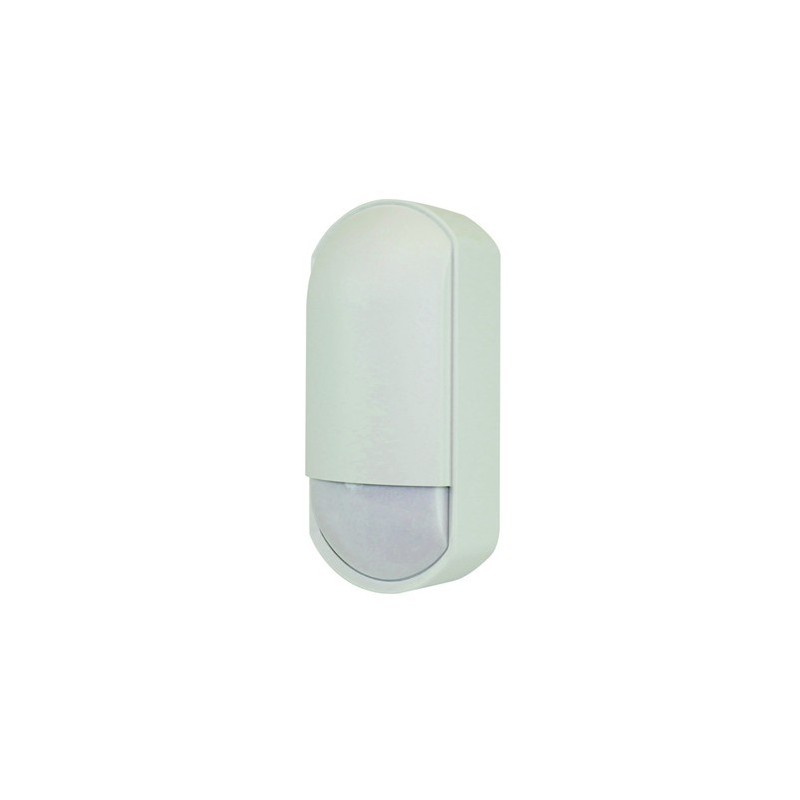

Détecteura alarm infrared digital 12x12m RXC-STF accessories optex.

Detector 12x12 digital infrared (IRP) with tolerance to small animals.

New generation of the RX-40QZ with compensation digital temperature and ball delivered systematically.

New generation of the RX-40QZ with compensation digital temperature and ball delivered systematically.

Comes with a stand.

Features accessories optex RXC-STF :

• Detection method : passive Infrared.

• Coverage : 12m x 12m - 85°wide.

• Detection Zones : 78 areas.

• Height mounting : 1.5 to 2.4 m.

• Alarm indicator LED : ON/OFF Switch.

• Period alarm : Approx. 2.5 sec.

• Alarm output : N. C., 24VDC 0.2 A max.

• Protection switch : N. C., open when cover is removed.

• Sensitivity /Range : Adjustable LOW/MID/HI.

• Warm-up period : Approx. 30 sec.

• Power supply : 9.5 to 16VDC.

• Supply current : 8mA[normal], 11mA[max.] at 12VDC.

• Weight : Approx. 70g [with the support of : 90g]

• Operating temperature : -20°C to +50°C.

• Ambient humidity : 95% max.

• Parasites RF : No alarm 10 V/in.

• Certification EN50131-2-2

• Volumetric 12m x 12m 85°, 78 areas

• Installation height 1.5 m to 2.4 m

• Lens multi focus (patented)

• Settings sensitivity

• Quad zone logic

• Optical sealed against insects

• NFA2P
