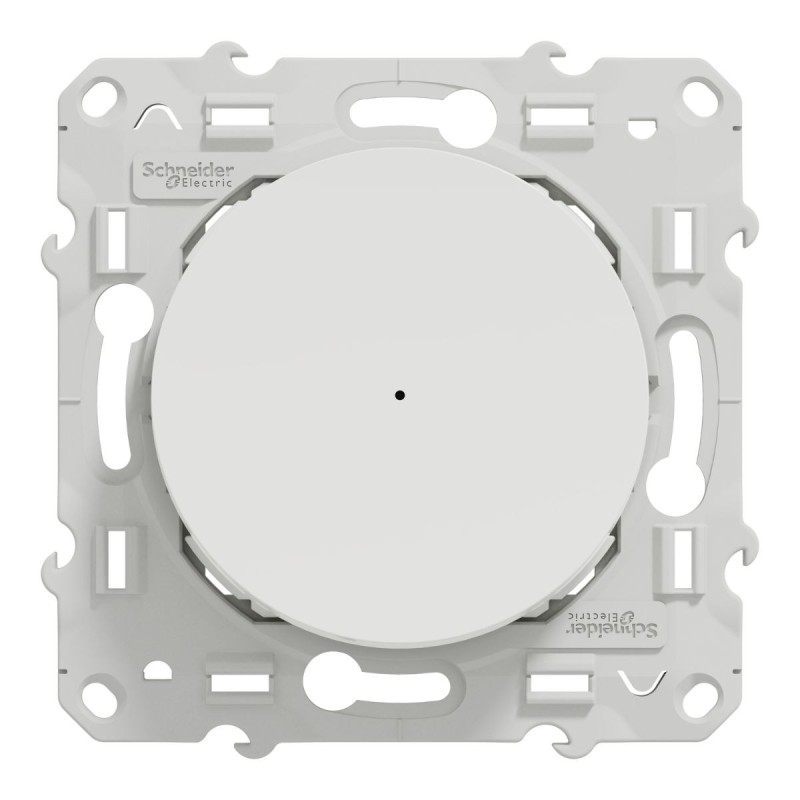

Wiser Odace S520530W push button 10A Zigbee

With the connected 10A relay switch (hereinafter referred to as the relay switch), you can switch ohmic, inductive or capacitive loads.

Command Options

Home control: To control the relay switch via the Wiser app, you will need the Wiser gateway.

Part control: To control the relay switch with other Wiser devices, it can be paired with other Wiser devices in the same Zigbee network.

Direct operation: You can always control the relay switch directly on site.

You can also connect many mechanical switches.

Characteristics Wiser Odace S52530W push button 10A Zigbee:

• Rated voltage: 230 VAC ∼, 50 Hz

• Rated power: Standby: 0.4 W max.

• Connection terminals: Screw terminals for max. 2 x 2.5 mm2, 0.5 Nm

• Expansion unit: Single switch, unlimited number, max. 50 m

• Fuse protection: Circuit breaker 16 A Rated current: 10 A, cosφ = 0.6

• Operating frequency: 2405-2480 MHz

• Max. transmitted radio frequency power: < 10 mW

• Certification: Zigbee 3.0
