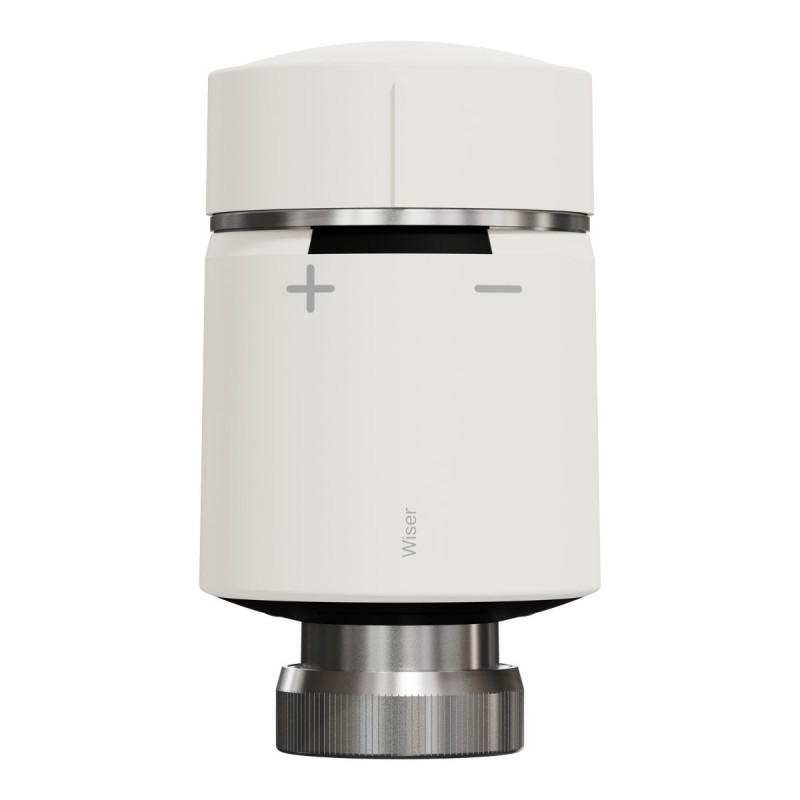

Wiser CCTFR6100 - Pack 3 Zigbee thermostatic valve

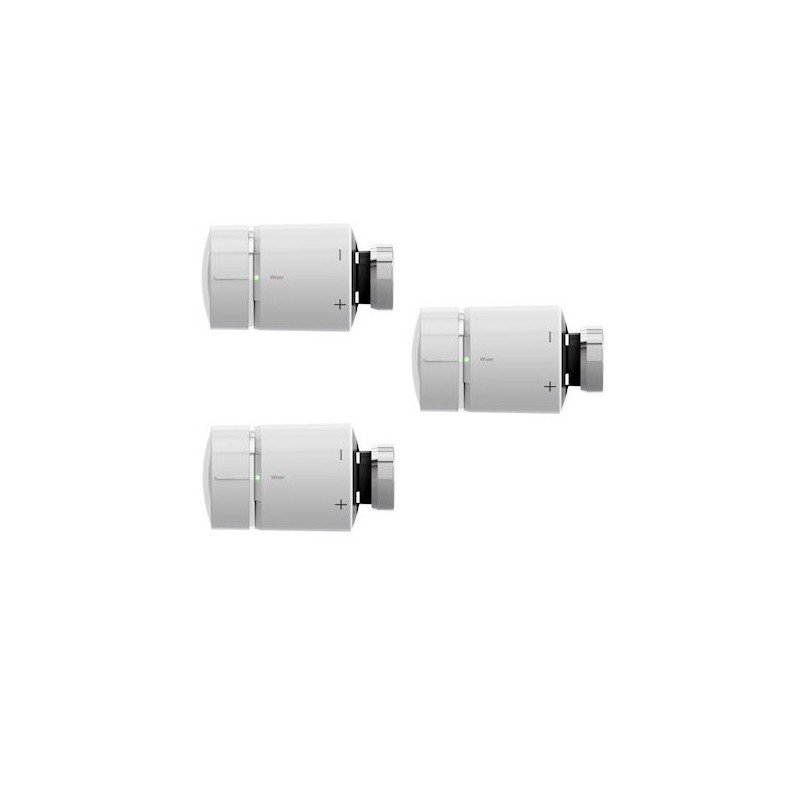

Complementary pack of 3 Wiser CCTFR6100 valves to control 3 hot water loop radiators: no need for thermostats because the valve has a probe that takes the temperature.

Wiser thermostatic valve CCTFR6100 to connect and control the heating, it's as easy as Wiser!

The Wiser™ connected heating system uses technology to make it easy to use and install in new, old and multi-family homes.

Wiser thermostatic valve CCTFR6100 allows you to control, adjust or start the heating system when winter arrives with just a few clicks on a smartphone via the Wiser Home app. And the installation and setting of the heating system is just as easy via Wiser Home.

And if the home is equipped with several types of heating – a boiler plus electric radiators in the bedrooms for example – Wiser Home allows you to manage everything in a single ergonomic and intuitive environment.

Precise temperature control that bends to individual wishes

The Wiser Home app allows the heating to be adjusted to the nearest degree in up to 16 zones via four thermostatic valve heads or underfloor heating. This adjustment is also carried out room by room over 6 time slots per day. In addition, weather data is taken into account to adjust the heating.

Pre-programmed modes that make heating management easy

• Away mode to turn off the heating when no one is at home.

• Boost mode to increase the heating strongly and punctually over a chosen duration.

• Comfort Mode and Eco Mode to ensure that the temperature set point will always be reached at the precise moment it is programmed; and to optimize the transition between shutdown periods/phases and heating periods/phases.

Features Wiser CCTFR6100 - Zigbee thermostatic valve head:

• Wiser Range

• Product Brand Schneider Electric

• Type of product or equipment Radiator thermostat

• Related accessories Wiser hub generation 2

• Name Mobile App Wiser Home

• Application of the device Room

• Product Specific Application Heating

• Color Shade: White

• Complementary

• Equipment provided 2 batteries

• 1 adapter for Danfoss RA valves

• 1 x M30 nut x 1.5

• Communication Network Type Zigbee (2.4GHz), 2.5mW at <50m

• Maximum radio power 13 dBm (20 mW)

• Battery Type: AA Alkaline 1.5V

• Control Type Screw cap for temperature change +/- 2 ° C

• Remote Control

• Mobile App

• Temperature Setting Range 5... 30 °C 0.5 °C per step

• Local Signage 1 LED (Red) 1 LED (Blue) 1 LED (Green, Orange & Red)

• Test designation: Bale pressure 75 °C

• Software Class Class A

• Thermoplastic material

• Valve mounting location (with surface temperature max. 93°C)

• Controlled Fluid Continuous Water 73 °C

• Water at maximum 110 °C

• Diameter 51 mm

• Height 93 mm

• Environment

• IP protection degree IP30

• Disclaimer: This documentation is not intended to replace and cannot be used to determine the suitability or reliability of these products for any specific application

• Pollution level 2

• Operating Ambient Air Temperature 0... 45 °C

• Ambient temperature for storage -10... 55 °C

• Relative humidity 25... 90% operating 15... 90% Storage

• EN 60730-1 standards

• EN 60730-2-7

• EN 60730-2-9

• EN 300-328

• CE Product Certifications

• European Regulation 2014/53/EU - Radio Equipment Directive

• 2006/66/EC - Battery Directive
