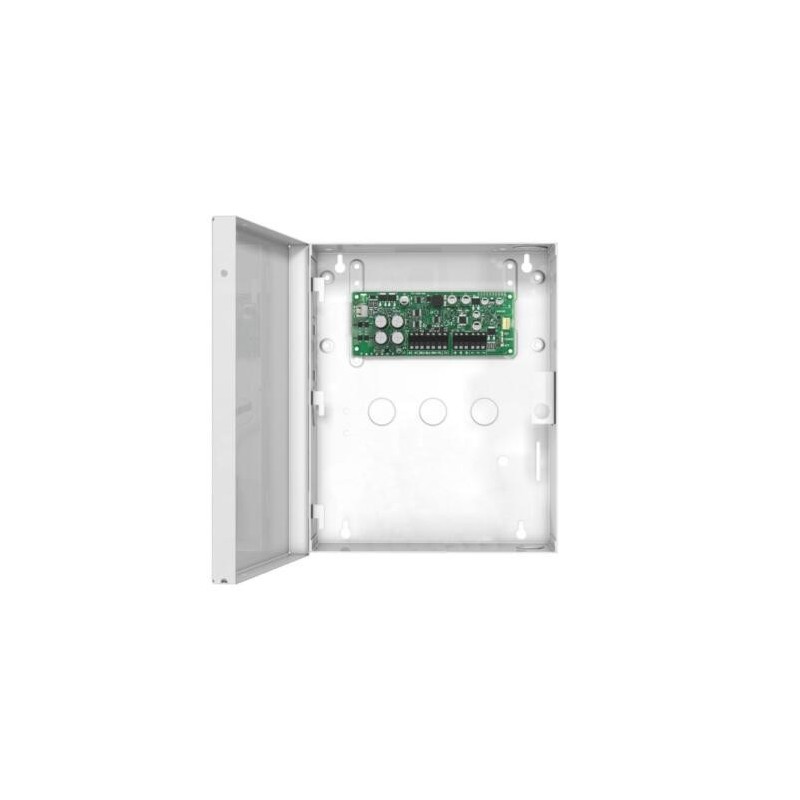

Paradox PS25 2.8A power supply module

The Paradox PS25 power supply module is a 2.8 A supervised switching power supply that connects to the Paradox control panel bus or can operate as a stand-alone power supply.
The Paradox PS25 power module provides a maximum of 2.5 A (13.8 Vdc) continuous auxiliary power output and charging a battery with 300 mA, battery charging current can increase up to 1.2 A if the auxiliary current is reduced accordingly.
When connected to a Paradox panel bus, it will provide information on AC Power, Output Voltage, Current and Warning before auxiliary output disconnect when battery is discharged.

Issues can be viewed on BabyWare, reported or sent via push notification. at PS25
will provide AUX power regardless of panel connection.
The Paradox PS25 power supply module is easy to install via 4 wires directly to the keypad bus.

Paradox PS425 power supply module characteristics:

• AC Power: 16 Vac, 40 VA, 50-60 Hz

• Auxiliary power 2.5 A maximum 13.8 Vdc when AC is present 12.8 Vdc or 1V battery when battery powered Disconnect at 9.5V

• Battery 12 Vdc, 4 Ah to 14 Ah

• Load 300 mA min to 1200 mA (auxiliary redirection if less than 2.5 A)

• Operating Temperature -20 to 50°C (-4 to 122°F)

• Humidity 95% max

• AC bus supervision, Aux voltage

• Dimensions (H x W x D) 5.6 x 14 x 2.5 cm

• CE certification

• Compatibility EVO192, EVOHD all versions, MG5050, SP5500, SP6000, SP7000 V7.14 and above
