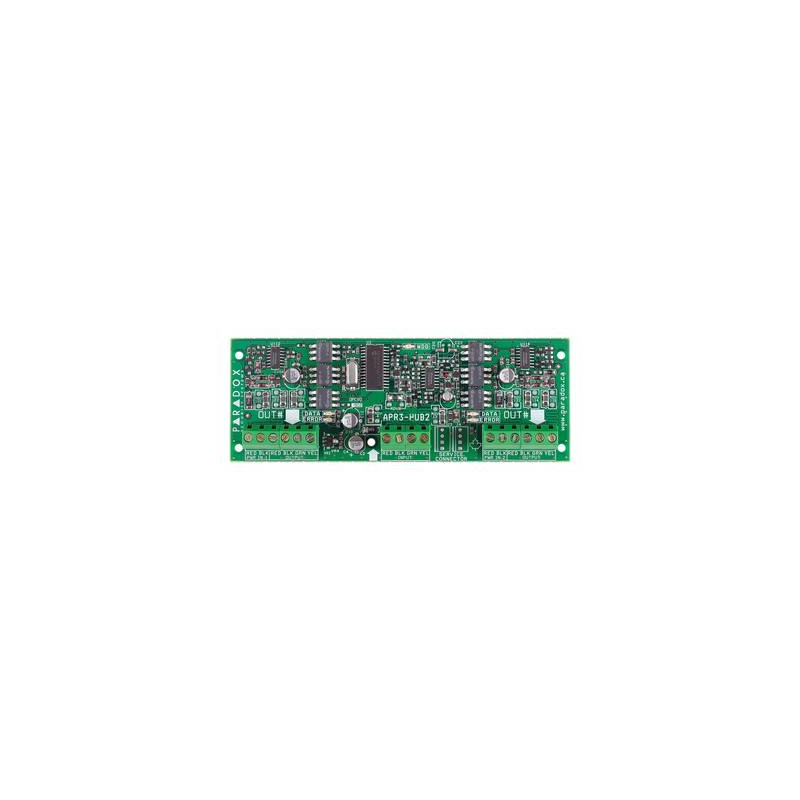

Paradox HUB2 Bus isolator module

The HUB2 is a non-addressable module that is expandable and splits the control panel bus into two bus outputs

completely isolated (two for each connected HUB2).

It allows expansion of the combus by regenerating the signal between the control panel and the modules.

If one bus output experiences a fault or tamper, the other output will not be affected.

The hub monitors the signal between the control panel and the modules for each output. If the hub detects a loss of signal integrity, it shuts off the faulty output until communication is properly restored.

Features HUB2 Paradox :

• Power supply: typically 12-16 VDC.

• Current consumption: typically 24 mA (50 mA max.)

• Panel Distance: Digiplex (DGP-848/DGP-NE96):

  • 18 AWG = 914 m (3,000 ft) or

  • 22 AWG = 305 m (1,000 ft)

  • Spectra

  • 18 AWG or 22 AWG = 76 m (250 ft)

  • Distance of each output: Digiplex (DGP-848/DGP-NE96):

  • 18 AWG = 914 m (3,000 ft) or

  • 22 AWG = 305 m (1,000 ft)

  • Spectra:

  • 18 AWG or 22 AWG =76 m (250 ft)

• Operating temperature: 0 to 55°C
