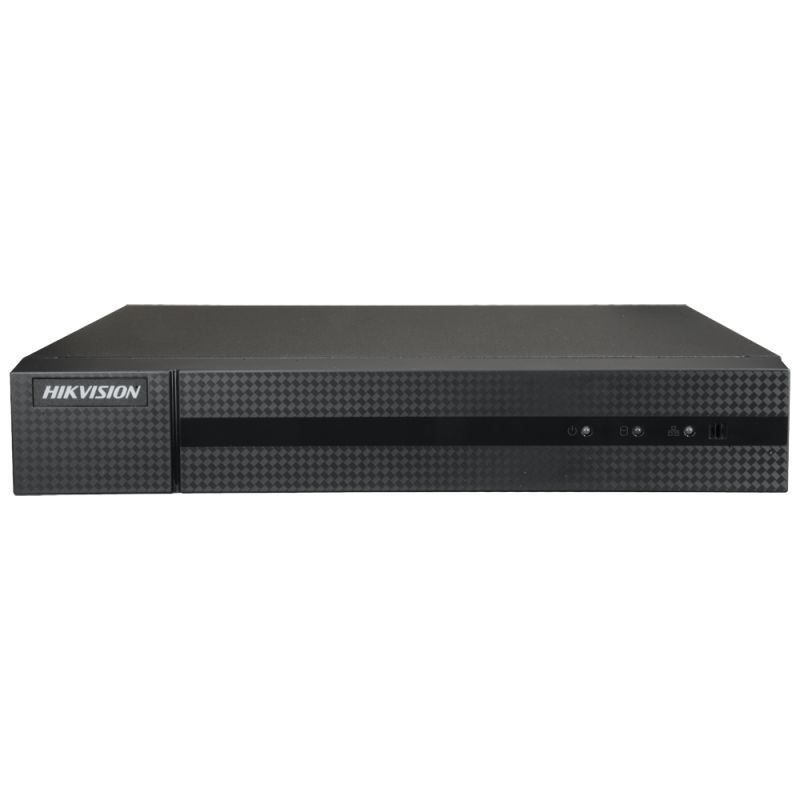

Hikvision HWN-5216MH-16P(D) - HiWatch 16 Channel PoE IP NVR Video Recorder

The Hikvision HiWatch 16-channel IP NVR with 16 PoE ports offers advanced surveillance with up to 12-megapixel recording, perimeter protection, facial recognition, and 4K HDMI video output.

Highlights of the 16-channel CCTV recorder

• High Resolution : Recording up to 12 megapixels for exceptional image quality.

• Advanced AI capabilities : Perimeter protection, facial recognition, and motion detection with filtering between people and vehicles.

• Connectivity and power : 16 PoE+ ports for easy installation and power cameras via a single Ethernet cable.

The Hikvision HiWatch 16-channel IP NVR with 16 PoE ports is a high-performance network recorder that is ideal for high-quality surveillance. It supports recording up to 12 megapixels, ensuring images with exceptional clarity. This NVR comes with advanced AI capabilities, including 2-channel perimeter protection at 4 MP, face detection with up to 4 attribute channels, and facial recognition with databases of up to 20,000 images. Motion Detection Technology 2.0 improves accuracy by distinguishing people from vehicles on 16 channels.

The NVR offers separate 4K HDMI and VGA 1080P video outputs, ensuring flexibility for display. It supports 16-channel synchronized playback and has a powerful decoding capability, allowing for the smooth management of multiple video streams. With 16 PoE+ (802.3 af/at) ports, it simplifies the installation of IP cameras by providing power and data via a single Ethernet cable.

It supports up to 2 hard drives with a maximum capacity of 10TB each, ensuring a large storage capacity. ANR technology ensures storage reliability even in the event of a grid failure. The NVR is compatible with common network protocols and can handle up to 128 remote connections, making it perfect for large surveillance installations.

Features of the Hikvision 16 Channel NVR

• Number of channels : 16 IP channels
• PoE ports : 16 PoE+ ports (802.3 af/at)
• Recording resolution : Up to 12 megapixels
• Compression formats : H.265+, H.265, H.264+, H.264
• Bandwidth : 160/160 Mbps input/output
• Video outputs : 4K HDMI and VGA 1080P
• Audio inputs : 1 RCA
• Audio outputs : 1 RCA
• Alarm inputs/outputs: 4 inputs / 1 output
• Decoding Capability :
  • AI off: 2 channels at 12MP (30 fps), 3 channels at 8MP (30 fps), 6 channels at 4MP (30 fps), 12 channels at 1080P (30 fps)
  • AI on: 1 channel at 12MP (30 fps), 2 channels at 8MP (30 fps), 4 channels at 4MP (30 fps), 8 channels at 1080P (30 fps)
• AI capabilities : Perimeter protection, facial recognition, motion detection 2.0
• Storage capacity : 2 hard drives up to 10 TB each
• Network Interface : Gigabit RJ45
• USB ports : 2 USB 2.0
• Network protocols : TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
• Power supply : 100V ~ 240V AC, 50/60Hz, 1A
• Power consumption : ≤15W (without HDDs and PoE)
• Operating temperature : -10°C ~ +55°C
• Operating Humidity : 10~90%
• Dimensions : 385 (W) x 52 (H) x 315 mm
• Weight : ≤3 kg
