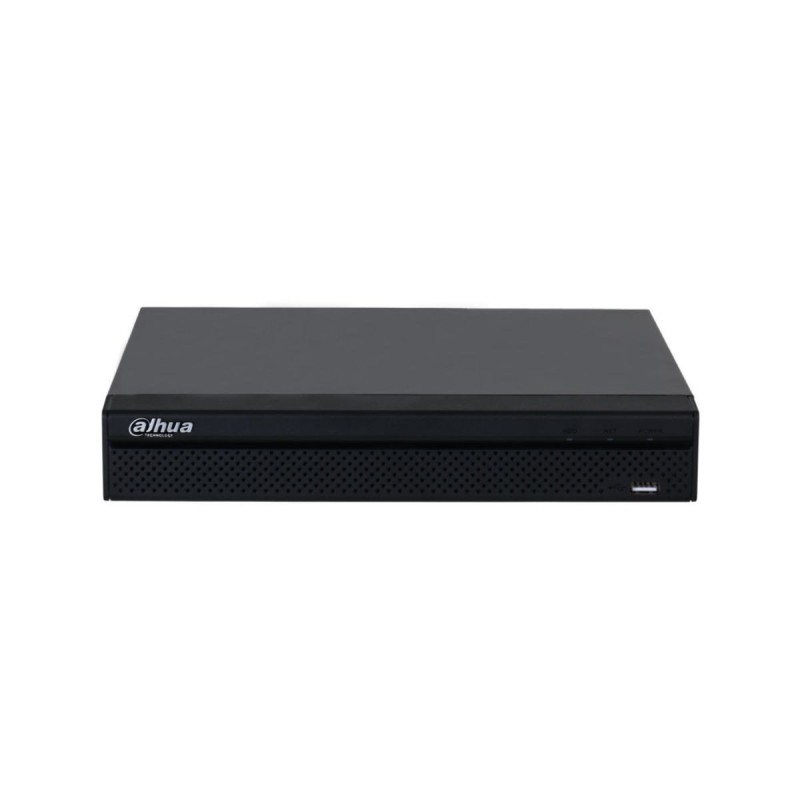

Dahua DHI-NVR2104HS-P-4KS3 - 4 Channel PoE IP NVR Digital Recorder

The Dahua 4-Channel IP NVR is a high-performance, smart camera-compatible video surveillance recorder with advanced video management with simultaneous 4K HDMI and VGA 1080P outputs, and featuring 4 PoE+ ports for simplified surveillance.

Highlights of 4 Channel PoE IP NVR:

• Compatible with smart cameras for advanced AI features, such as face detection and perimeter protection.

• Simultaneous 4K HDMI and VGA 1080P video outputs for flexible, high-quality viewing.

• 4 built-in PoE+ ports for simplified installation and powering cameras directly via the NVR.

The Dahua 4-channel IP NVR is designed for video surveillance installations that require intelligent management and reliable performance. This NVR supports up to 4 IP cameras and is compatible with the latest video compression technologies, including Smart H.265+ and Smart H.264+, for maximum bandwidth and storage optimization. With simultaneous 4K HDMI and VGA 1080P outputs, it offers exceptional picture quality and the ability to display on different screens at the same time. It is also equipped with 4 PoE+ ports for simplified installation, allowing the cameras to be powered directly via the NVR. This model supports artificial intelligence with features such as facial detection and perimeter protection, providing increased security for your facility. With up to 20TB of storage capacity (HDD sold separately), this NVR ensures long recording time.

Features of the CCTV recorder:

• IP Channels: 4
• Video compression: Smart H.265+, Smart H.264+, H.265, H.264, MJPEG
• Video outputs: Simultaneous 4K HDMI and 1080P VGA
• Bandwidth: 80 Mbps input, 80 Mbps recording, 60 Mbps output
• AI Decoding Capability Disabled:
  • 1 channel at 12MP (30 fps)
  • 1 channel at 8MP (30 fps)
  • 2 channels at 5MP (30 fps)
  • 3 channels at 4MP (30 fps)
  • 6 channels 1080P (30 fps)
• AI-enabled decoding capability:
  • 1 channel at 8MP (30 fps)
  • 1 channel at 5MP (30 fps)
  • 2 channels at 4MP (30 fps)
  • 4 channels 1080P (30 fps)
• PoE+ ports: 4 x 10/100Mbps ports
• Recording Resolution: 12MP, 8MP, 5MP, 4MP, 1080P, 720P
• Storage capacity: 1 SATA hard drive up to 20 TB
• Power supply: 53V DC, 1.22A
• Dimensions: 260 x 47.6 x 232.5 mm
• Net weight: 850 g
• Installation: In a rack or on a desk.
