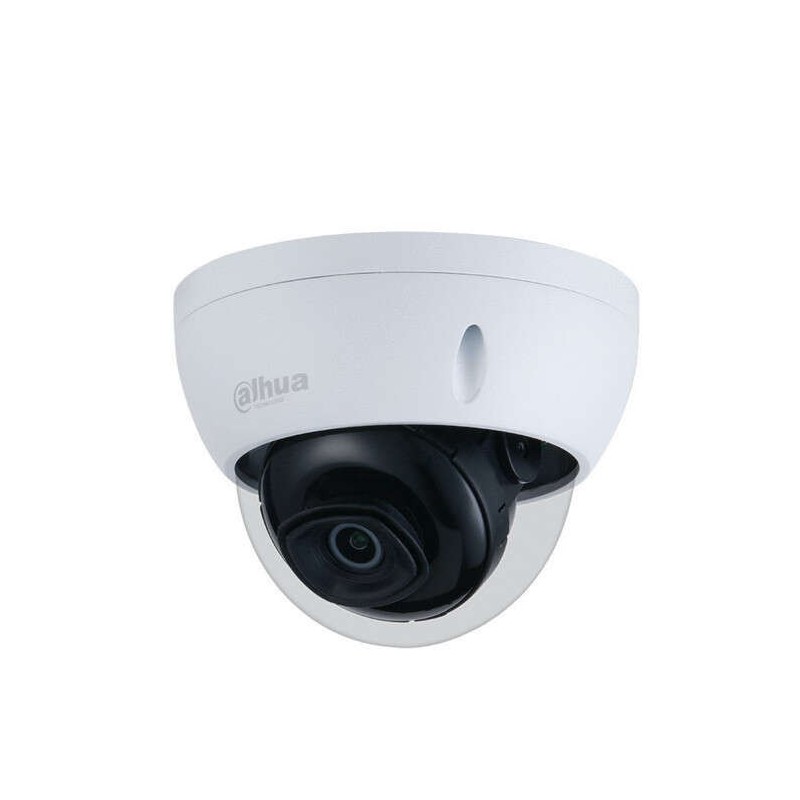

Dahua IPC-HDBW2230E-S - 2MP 2.8mm 30m IR PoE Camera

Dahua IPC-HDBW2230E-S 2MP 2.8mm 30m IR PoE Camera

Optics and field of view

2.8mm fixed lens with a wide angle of view, suitable for monitoring large areas with maximum coverage at short and medium distances. The 110° horizontal, 59° vertical, and 132° diagonal angle of view reduces the number of cameras needed to cover a single perimeter, while maintaining a controlled image geometry for video analysis and subject identification.

Sensor and image quality

1/2.7" CMOS sensor delivering a maximum resolution of 2 MP in 1920 x 1080, with a frame rate of 25/30 fps in Full HD for smooth motion reproduction. The camera incorporates a full set of image processing, including DWDR for handling high dynamic ranges, day/night switching with ICR filter for faithful color reproduction during the day and better sensitivity in night conditions, 3DNR digital noise reduction to limit noise in low light, as well as HLC functions, BLC and AGC to compensate for backlighting, strong headlights and rapid changes in brightness.

Night and infrared vision

Built-in infrared module with a range of 30 meters, ensuring effective monitoring in complete darkness. Automated IR management, combined with the ICR mechanical filter, allows for a smooth transition between day and night modes, optimizing the sharpness of details and contrast of low-light scenes. The IR range is sized for video surveillance applications of perimeters, building entrances or medium-sized parking lots.

Video Compression and Streams

Video compression system supports H.265, H.264, and H.264B codecs to significantly reduce bandwidth and storage space requirements, while maintaining a high level of detail. Support for 1080p streaming at 25/30 fps enables real-time recording and viewing with controlled latency, compatible with most current network recorders and monitoring platforms.

Intelligent video analysis features

Video analytics engine with built-in advanced detection features, such as intrusion into a defined area and virtual line crossing. These features enable the implementation of precise security scenarios, such as the detection of unauthorized penetration in a sensitive perimeter or the directional counting of passages, with the generation of real-time alerts to the video management systems.

Local storage and recording

Built-in micro SD card slot, compatible with capacities up to 256GB, allowing local recording of video footage. This on-board storage capacity ensures redundancy of recordings, useful in the event of a network failure or loss of connection with the central recorder. On-board storage also facilitates decentralized or temporary installations that do not have a permanent link to an NVR.

Power and energy consumption

The camera can be powered by DC 12 V with a consumption of 1.8 W, or via PoE (802.3af) with a typical consumption of 2.2 W and a maximum power of 4.4 to 5 W under load. PoE compatibility simplifies infrastructure by enabling power and data to be routed over a single Ethernet cable, reducing installation costs and facilitating deployments over long distances.

Resistance to outdoor environments

Rugged IP67 certified design for complete protection against dust and splashing water, allowing for exposed outdoor installation without additional housing. Resistance to mechanical shocks is ensured by the IK10 certification, guaranteeing high resistance to vandalism and impacts. The operating temperature range of -40 °C to 60 °C allows use in extreme weather conditions, in very cold environments or in high heat exposure.

mechanics, orientation and fixing

The camera offers a panning range of 0° to 355°, allowing the field of view to be precisely adjusted during installation. Mounting options include wall, ceiling or pole mounting, providing great flexibility in positioning depending on the site configuration. Its compact size, with a diameter of 8.1 cm, a length of 11 cm and a weight of 0.35 kg, facilitates discreet integration on facades or indoors.

Interoperability and system integration

Compatibility with ONVIF and CGI protocols ensures easy integration into most IP video surveillance systems and software platforms on the market. This interoperability allows the camera to be combined with third-party recorders, VMS, and analytics solutions, ensuring flexibility in the design and evolution of the security architecture.

Features of Dahua IPC-HDBW2230E-S - 2MP 2.8mm 30m IR PoE Camera:

• Fixed Lens: 2.8mm
• 1/2.7" CMOS sensor
• Maximum resolution: 2MP
• Infrared distance: 30 meters
• Image enhancement function: DWDR, Day/Night(ICR), 3DNR, HLC, BLC, AGC
• Power supply DC12V, 1.8W, , PoE (802.3af) 2.2W, max. 4.4W, max 5W (PoE)
• IP67, IK10
• 25/30fps@1080P(1920x1080)
• Pan: 0° ~355°
• Video compression: H.265/H.264/H.264B
• Micro SD card slot, max. 256GB
• Angle of view: H: 110°, V: 59°, D: 132°
• Intelligent functions: Intrusion into the area, line crossing
• Compatibility: ONVIF, CGI
• Fixing: wall, ceiling, pole
• Operating temperature: -40°C to 60°C
• Dimensions: Φ8.1cm x 11cm
• Weight: 0.35Kg
