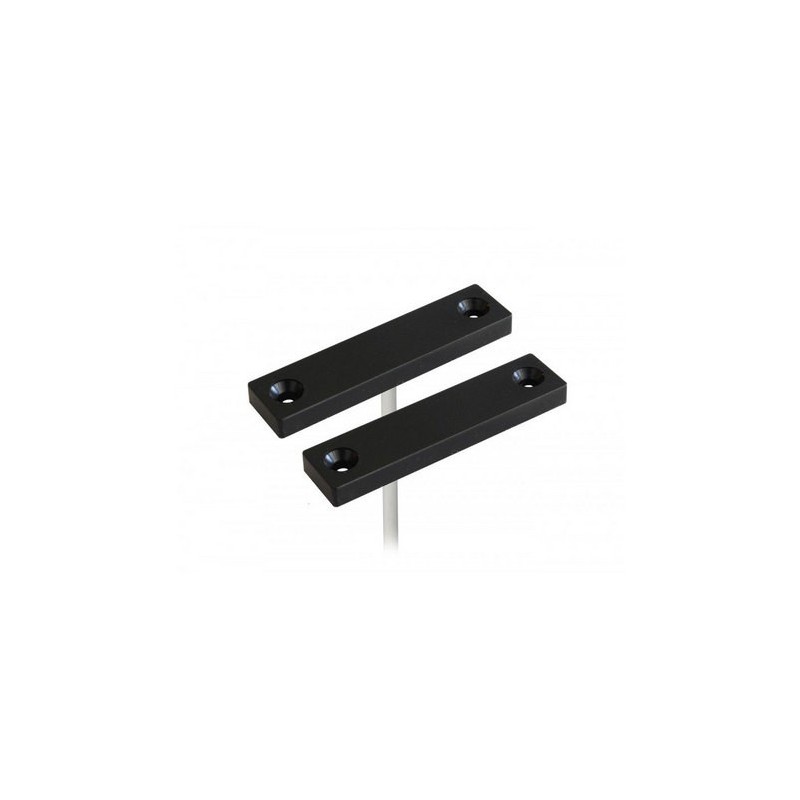

Alarmtech MC 740P-BL - Surface Magnetic Contact

The universal magnetic contact protects doors and windows from unauthorized openings, suitable for alarm and access control systems with discreet installation and IP67 waterproof protection.

Highlights of the Alarmtech magnetic contact:

• IP67 protection : waterproof, ideal for outdoor or humid environments.

• Flexible installation : Compact dimensions for tight spaces such as drawers.

• EN-50131-2-6 Grade 2 certified : compliance with high safety standards.

This universal magnetic contact is designed for use in alarm and access control systems, providing a reliable solution to protect doors, windows, and other access points from unauthorized opening. Thanks to its compact design, it can be installed in discreet and inaccessible places, such as drawers, thus guaranteeing discreet and effective protection. Made with an ABS plastic housing and an Alnico 5 magnet, this contact is rugged and waterproof, with an IP67 rating to resist water and dust, making it suitable for outdoor or humid environments. In addition to this, this device complies with the EN-50131-2-6 Grade 2 safety standard, ensuring a high level of protection. It is supplied with a 2-meter cable, allowing for flexible installation.

Characteristics:

• Function : NC (normally closed)
• Connection : 2 meter cable
• Magnet : Alnico 5
• Material : ABS plastic housing
• GAP : 37 mm in non-magnetic material
• Operating temperature : -40°C to +70°C
• Protection Grade : IP67
• Contact : 48V DC / 500 mA / 10 VA
• Contact dimensions : 58 x 14 x 5 mm
• Magnet dimensions : 58 x 14 x 5 mm
• Certified : EN-50131-2-6 Grade 2
