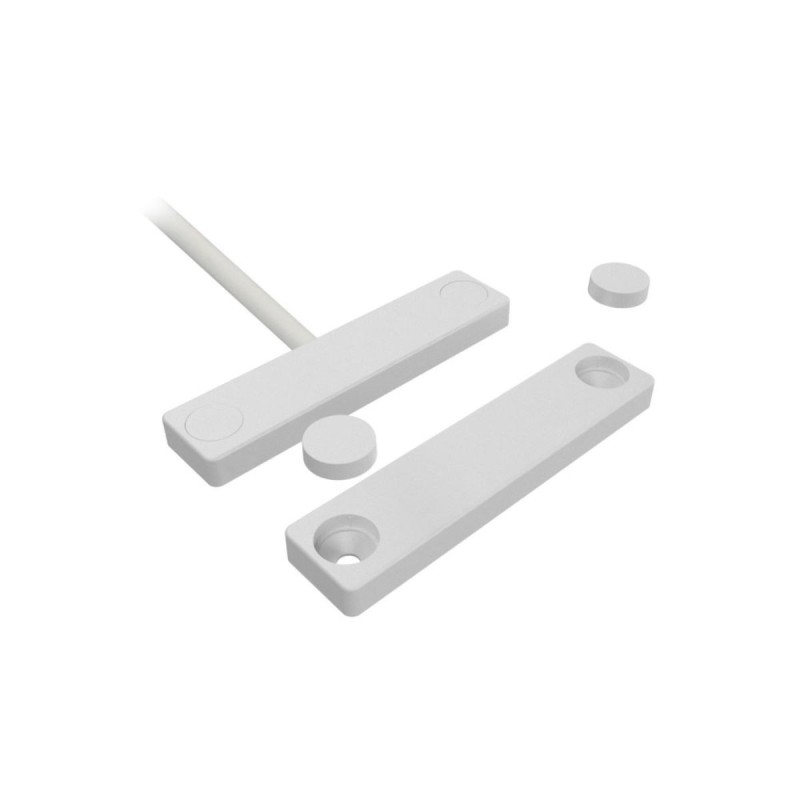

Alarmtech MC 740-E - Surface Magnetic Contact

This EN50131-2-6 Grade 2 certified universal magnetic contact is designed for security and access control systems, providing a reliable solution to protect unauthorized openings on doors, windows, and other surfaces. With an NC (normally closed) function, it ensures fast breach detection. The slim design and compact dimensions allow for easy installation, even in tight spaces such as drawers. The contact and magnet are made of durable materials and protected against the weather thanks to IP67 waterproofing.

With a gap of 37 mm for non-magnetic materials, this device is suitable for installations where the distance between components is slightly greater than normal. However, it is not recommended for use with magnetic materials.

Technical characteristics:

• Type : Universal Magnetic Contact, NC
• Certification : EN50131-2-6 Grade 2
• Operating temperature : -40°C ~ +70°C
• Protection : IP67, waterproof
• Wiring : 2 meters included
• Materials : Alnico 5 magnet, ABS housing
• GAP non-magnetic material : 37 mm
• GAP Magnetic Material : Not Recommended
• Colour : White
• Connector dimensions : 60 mm (L) x 14 mm (W) x 5 mm (H)
• Magnet dimensions : 60 mm (L) x 14 mm (W) x 5 mm (H)
• Electrical contact : 48V DC / 500 mA / 10 VA
