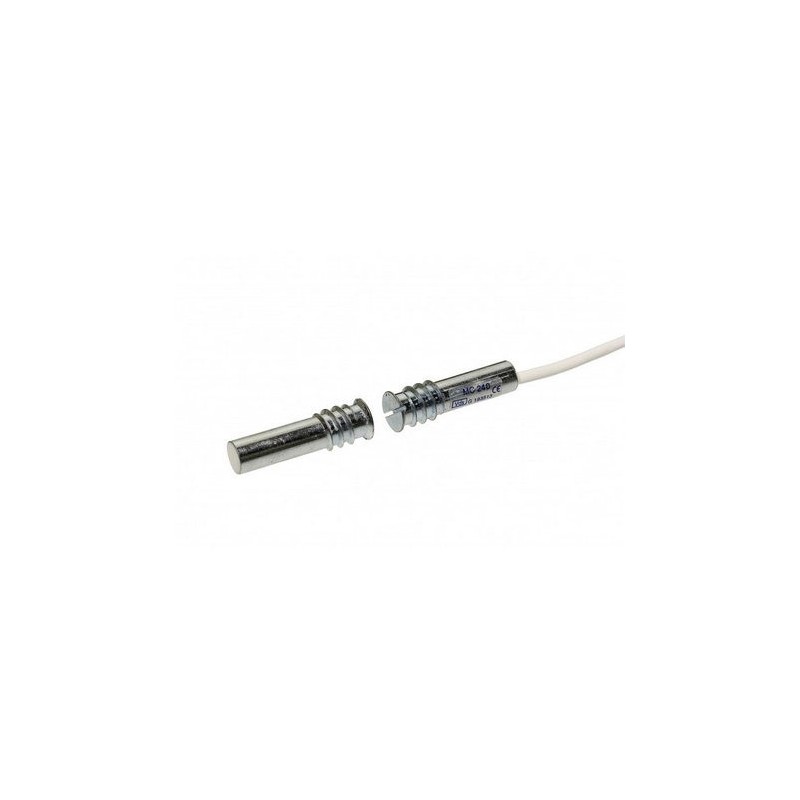

Alarmtech MC 240 - Magnetic Contact for Recessed Mounting

The MC 240 is a high-performance recessed magnetic contact, designed for the security of doors, windows and gates. Thanks to its advanced features, it offers effective protection against unauthorized openings.

Highlights of the MC 240 magnetic contact:

• Anti-tampering : Equipped with anti-tampering functionality, the MC 240 provides enhanced security against unwanted manipulation.

• Robustness and durability : With an operating temperature of -40°C to +70°C and an IP67 rating, this contact is suitable for both indoor and outdoor use.

• Easy to install : Its design allows for easy installation in various materials, including wood, plastic, and ferromagnetic surfaces, thanks to its varied accessories.

The MC 240 is a high-quality magnetic contact, designed to meet the requirements of alarm and access control systems. It is ideal for protecting critical entrances such as doors, windows, and gates from unauthorized openings. Its compact design allows for discreet installation, while its reed configuration mechanism (Form A) ensures reliable operation. With an anti-tamper design, it prevents unauthorized tampering, ensuring the safety of the premises. Thanks to its resistance to extreme weather conditions, the MC 240 is perfectly suited for use in various environments, ensuring consistent performance throughout the year.

Characteristics

• Type : Recessed magnetic contact
• Threads : 4 threads
• Anti-tampering : Yes
• GAP : 22 mm
• Relay output : NC (normally closed)
• Reed Configuration : Form A (Open at Rest)
• Operating temperature : -40°C to +70°C
• Protection Grade : IP67
• Magnet dimensions : Ø11 x 37 mm
• Contact dimensions : Ø11 x 37 mm
• Drilling diameter : Ø8.6 mm
• Compliance : EN-50131 level 2 standard
