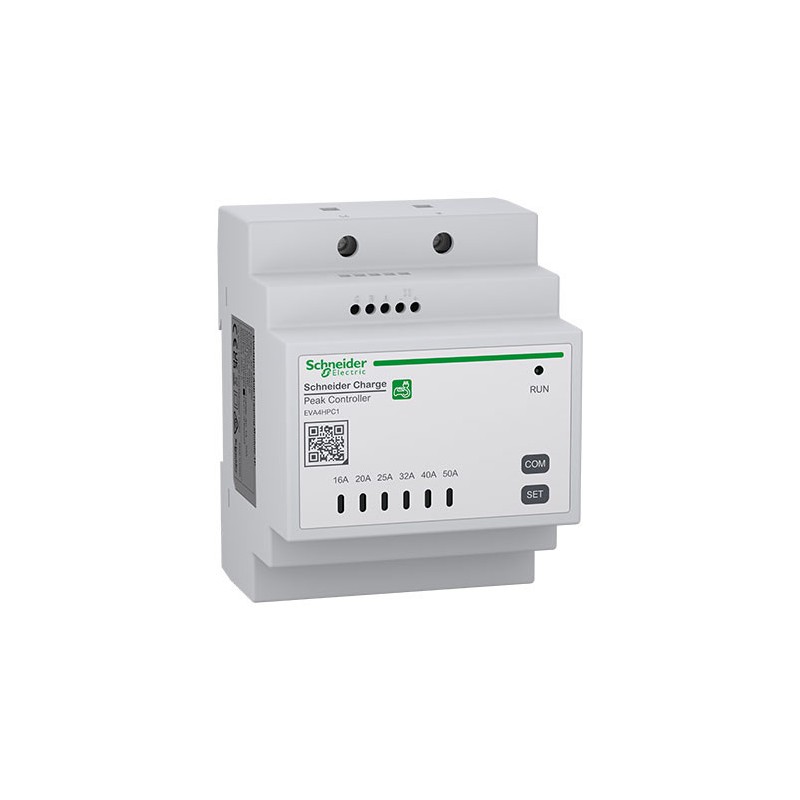

Schneider Electric EVA4HPC1 - Single-phase anti-trip system up to 50A for EVlink EV charging station

The Schneider Electric EVA4HPC1 load shedder is designed to optimize electric vehicle charging by adjusting power in real time, avoiding disjunctions and limiting overall power consumption.

Strengths

• Intelligent Load Management : Dynamically adjusts the power delivered to the electric vehicle (16A to 50A) according to other electrical appliances in the household.

• Energy savings : Avoids increasing the power subscribed to the electricity supplier.

• Easy and compact installation : Quick attachment on 35 mm DIN rail, with LED signage for real-time tracking.

The EVA4HPC1 anti-trip system is an advanced electrical charge management system, designed to ensure safe and optimized charging of electric vehicles on a single-phase network. It avoids disjunctions by automatically adjusting the power delivered to the charging station according to the consumption of the other electrical equipment in the home.

Thanks to its manual adjustment, the user can set the maximum power allocated to the vehicle between 16A and 50A, thus guaranteeing optimal flexibility. In addition, it simulates an ICT signal if the Linky meter is not nearby, ensuring efficient load management without the need for network modifications.

This load shedder is compatible with EVlink Home charging stations and is suitable for both residential installations and small businesses looking to optimize their electricity consumption.

It is quick and easy to install, with 35mm DIN rail mounting and a reduced power consumption of just 4W. Thanks to its LED indicators, it offers real-time monitoring of the inspection process, possible faults and the status of the on-board communication.

Technical characteristics

• Product Type : Single-Phase Load Reduction
• Maximum current adjustment supplied to the terminal : Manual (16A, 20A, 25A, 32A, 40A, 50A)
• Supply voltage : 220-230V AC (2 phases, ±5%)
• Power consumption : 4W
• Connectivity : PLC (Power Line Communication)
• Local signage :
  • Orange LED : Control Process
  • Red/orange LED : fault signalling
  • Orange LED : Communication Status
• Installation : 35 mm DIN rail, interior
• Material: Plastic, white color
• Dimensions : 70 × 93 × 69 mm
• Weight : 196 g
• Standards : EN 61010-1:2010, EN 61326-1:2013
