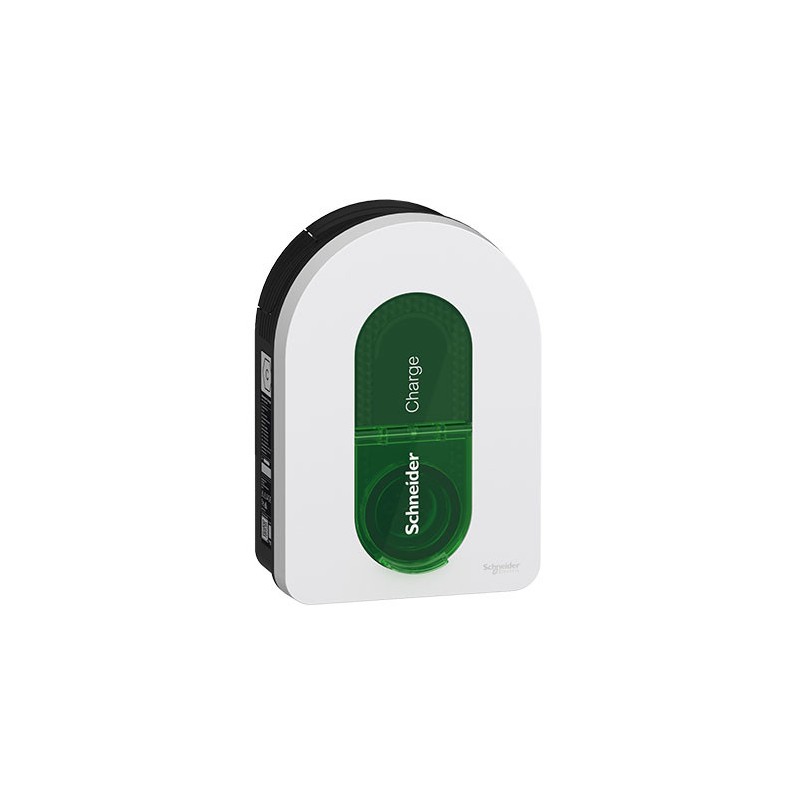

Schneider Electric EVH5A22N400F - Schneider Charge electric car charging station for home

The Schneider Charge station is a smart, fast and connected charging solution, suitable for single-family homes, with simplified installation and optimized management via the Wiser Home app.

Presentation of the Schneider Charge charging station:

Schneider Charge highlights:

• Adaptable power and fast charging : Configurable in 7.4 kW, 11 kW or 22 kW, it allows you to recover up to 100 km of range in 1 hour.

• Quick and intuitive installation : Assembles in 15 minutes, with three wiring options (top, bottom or back) and configuration via the eSetup app.

• Advanced connectivity : Remote control via Wi-Fi, Ethernet or OCPP 1.6, allowing charging to be programmed at off-peak times.

The Schneider Charge station is a high-performance and scalable charging solution, designed to meet the needs of users of electric and plug-in hybrid vehicles. It replaces the EVlink Home and Home Smart range by offering a single reference, configurable according to the power required (7.4 kW in single-phase, 11 kW or 22 kW in three-phase), thus guaranteeing fast and efficient charging.

It is specially designed for drivers who travel more than 50 km per day in an electric or plug-in hybrid vehicle, looking for fast charging, optimised energy management and a modern design.

Installation is simplified, with assembly in just 15 minutes thanks to optimized ergonomics and three wiring options (top, bottom, or rear). Commissioning is also facilitated by the eSetup application, allowing for quick and complexity-free parameterization.

Featuring advanced connectivity, it is compatible with the Wiser ecosystem, allowing intelligent and remote management of charging via Wi-Fi, Ethernet or OCPP 1.6 protocol. Users can lock, start, stop and schedule charging remotely, especially to take advantage of off-peak hours and optimize their energy consumption.

With a robust design and modern design, the Schneider Charge station offers high protection (IP55 and IK10), ensuring resistance to outdoor conditions.

Technical characteristics

• Output power : 7.4 kW (32 A), 11 kW (16 A) or 22 kW (32 A)
• Power supply : 230 V single-phase or 400 V three-phase
• Number of shots : 1 Type 2 plug with shutter
• Installation : Wall mounting, top, bottom or rear wiring
• Installation time : 15 minutes
• LED signage : Red, green and blue status indicator
• Connectivity : Wi-Fi, Ethernet, OCPP 1.6 (Wiser Home compatible)
• Protection : IP55 (waterproof) and IK10 (impact resistance)
• Operating temperature : -30°C to +45°C
• Dimensions : 352 × 244 × 117 mm
• Weight : 3.2 kg
