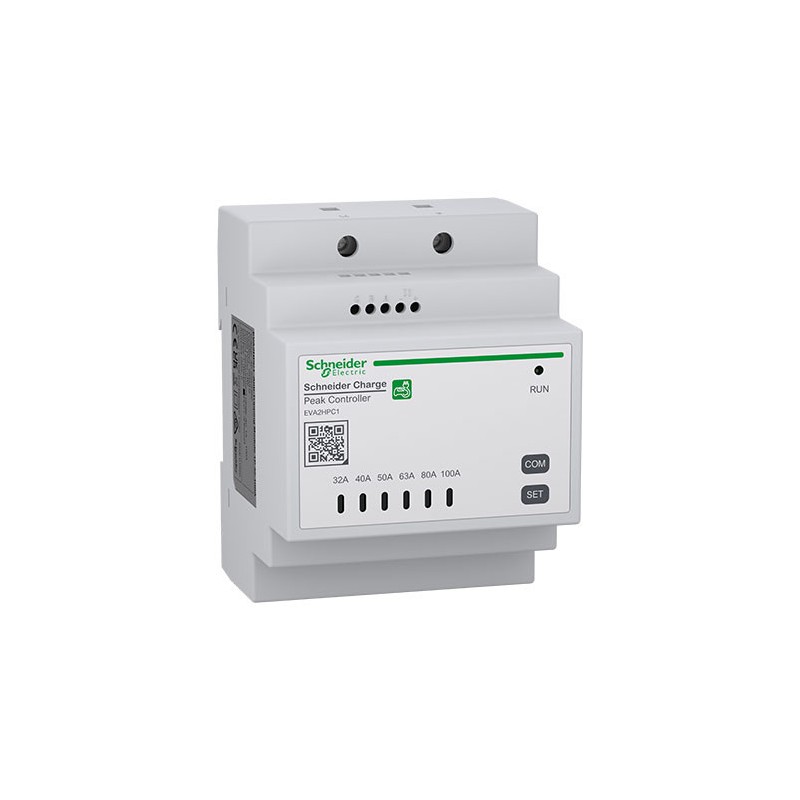

Schneider Electric EVA2HPC1 - Single-phase anti-trip system up to 100A for EVlink EV charging station

The Schneider Electric EVA2HPC1 is an intelligent load shedder, designed to dynamically adjust the charging power of electric vehicles (up to 100A), avoiding disconnections while optimizing the household's energy consumption.

Strengths

• Intelligent Power Management : Manually adjust the charging current between 32A and 100A to prevent electrical overloads.

• Optimization of energy costs : Allows you to limit the power subscribed to the electricity supplier, thus reducing expenses.

• Easy installation and real-time tracking : Mounting on 35 mm DIN rail with LED indicators indicating control, fault and communication status.

The EVA2HPC1 anti-trip system is an advanced solution for securing and optimizing the charging of electric vehicles in single-phase installations. It automatically regulates the power delivered to the station according to the consumption of other electrical equipment in the house, thus preventing untimely disconnections.

Thanks to manual adjustment, the charging power can be adjusted between 32A and 100A, providing maximum flexibility according to the needs of the household and the capacities of the electrical network. In addition, it simulates an ICT signal, ensuring optimal management even when the electricity meter is not nearby.

This system is compatible with EVlink Home charging stations, allowing for seamless integration into a residential environment. It easily attaches to a 35mm DIN rail and consumes only 4W, ensuring a low energy footprint.

The device is equipped with three LED lights that provide real-time tracking:

• Control process (orange LED),
• Fault Signalling (Red/Orange LED),
• Communication status (orange LED).

Thanks to its robust design, it operates in extreme conditions, with an operating temperature of -30°C to +50°C, surge resistance (category IV) and a humidity tolerance ranging from 5% to 95%.

Technical characteristics

• Product Type : Single-Phase Load Reduction
• Current Adjustment : Manual (32A, 40A, 50A, 63A, 80A, 100A)
• Supply voltage : 220-230V AC (2 phases, ±5%)
• Power consumption : 4W
• Connectivity : PLC (Power Line Communication)
• Local signage :
  • Orange LED : Control Process
  • Red/orange LED : fault signalling
  • Orange LED : Communication Status
• Installation : Indoor mounting on 35 mm DIN rail
• Material: Plastic, white color
• Dimensions : 70 × 93 × 69 mm
• Weight : 196 g
• Compatibility : EVlink, EVlink Home
• Terms of use :
  • Max. altitude : 2000 m
  • Operating temperature : -30°C to +50°C
  • Storage temperature : -40°C to +85°C
  • Relative humidity : 5% to 95%
  • Surge Category : IV
  • Pollution degree : 3
• Standards : EN 61010-1:2010, EN 61326-1:2013
