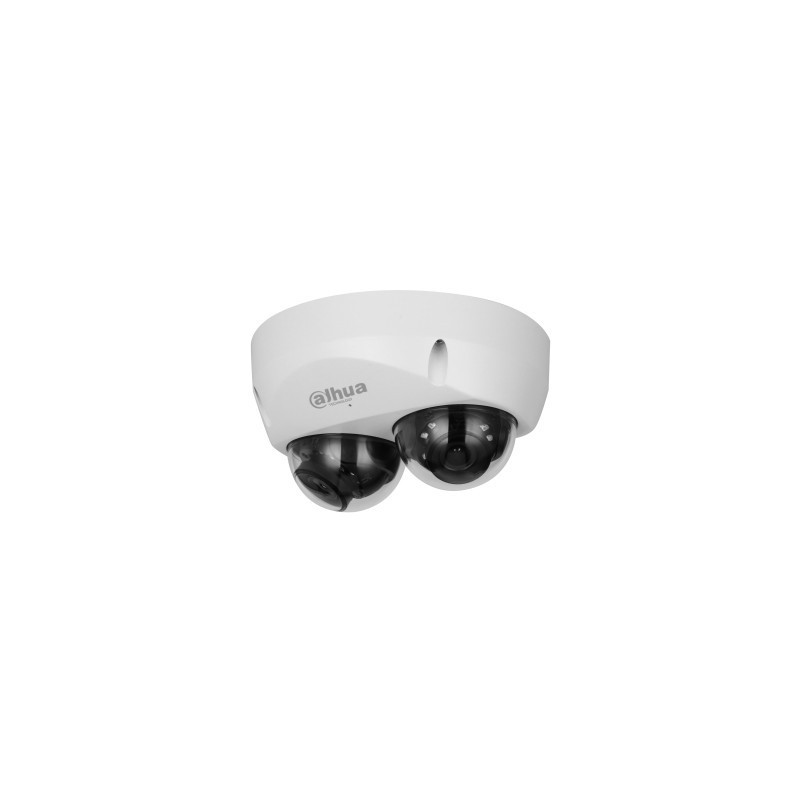

Dahua IPC-HDBW5441F-AS-E - WizMind 4 Megapixel Double Mini IP Dome

Dahua IPC-HDBW5441F-AS-E - WizMind 4 Megapixel Double Mini IP Dome

The Dahua IPC-HDBW5441F-AS-E2 camera is a dual-sensor IP camera from the WizMind series, designed to offer intelligent panoramic surveillance with advanced video analytics features.

This camera is ideal for monitoring large areas that require panoramic coverage, such as lobbies, shopping malls, warehouses, or public spaces. Its advanced video analytics capabilities make it a smart choice for applications that require intelligent and proactive monitoring.

• Sensors: Two 1/2.7" CMOS sensors of 4 MP each

• Maximum resolution: 2560 × 1440 pixels at 25/30 frames per second

• Lenses: Fixed 2.8mm or 3.6mm, offering a horizontal angle of view of 95° or 78° depending on the model

• Night vision: Infrared illumination up to 30 meters with 16 IR LEDs

• Light sensitivity: 0.005 Lux in color, 0.0005 Lux in black and white, 0 Lux with illuminator on

• Wide Dynamic Range (WDR): 120 dB for clear images in high-contrast conditions

• Video compression: H.265, H.264, MJPEG, with support for Smart H.265+ and Smart H.264+ smart codecs

• Audio: Built-in microphone, RCA audio input and output for two-way communication

• Storage: Micro SD card slot up to 256GB, support NAS and FTP/SFTP storage

• Power supply: 12V DC or PoE (802.3af)

• Protection: IP67 rating against dust and water, IK10 for impact resistance

• Dimensions: 122 × 66.2 mm

• Weight: Approx. 520 g

Smart Detection: Intrusion Detection, Line Crossing, Abandoned or Missing Object Detection, People Gathering Detection, Parking Detection, Loitering Detection

SMD 3.0: Reducing false alarms through accurate detection of human and vehicle movements

Face Detection: Tracking, Capture, Snapshot Optimization, Face Enhancement, and Exposure

People counting: Counting by passage line, counting in a specific area, queue management, with daily, monthly and annual report generation

Smart Search: In conjunction with a smart NVR, enables fine-grained search, event extraction, and merging of event videos

Features of Dahua IPC-HDBW5441F-AS-E - WizMind 4 Megapixel Dual Mini IP Dome:

• Dual fixed lens: 2.8mm

• 1/2.7'' CMOS sensor

• Maximum resolution: 2x 4MP

• Infrared distance: 30 meters

• Image enhancement function: Rotation mode, WDR, 3D NR, HLC, BLC, digital watermark, applicable to various surveillance scenes.

• DC12V/PoE power supply, max. 4W

• IP67, IK10

• Angle of view: H: 95°

• 25/30 fps@4MP(2560x1440)

• H.264B/H.264/H.264H/H.265 video compression

• Minimum illumination 0.005 lux@F1.6

• Pan: 0°–175°

• ONVIF Compatibility (S/G/T)

• 3 streams

• Smart Monitoring: Intrusion, Trigger, Fast Move (Gathering Three People and Parking Detection)

• Face Detection: Tracking, Snapshot, Snapshot Optimization, Optimal Face Snapshot Download, Face Enhancement, and Face Exposure

• People counting: Queue management, counting people in the area, (day/month/year)

• Dual-channel intelligence can be activated at the same time and independently of each other

• I/O 1/1 audio outputs, I/O 2/2 alarm outputs

• Micro SD card slot, max. 256GB

• Operating Temperature -40°C to 60°C

• Dimensions: 6.6cm x Φ12.2cm

• Weight: 0.52Kg
