Wiser Odace S940567 - 4A zigbee roller shutter switch anthracite

The Wiser Odace roller shutter switch S940567W in anthracite grey allows roller shutters to be controlled and automated according to weather conditions, with local and remote control via the Wiser app.

• Refined and modern design, flush finish

• Manual control or via voice assistant/smartphone to manage roller shutters

• Allows you to adjust the blinds' shutters and slats for optimal light control and privacy

• Compatible with the Wiser app for remote control and intelligent automation

• Automation according to weather parameters for more comfort and efficiency

Highlights of the roller shutter switch

• Intelligent automation : Manages roller shutters based on temperature and sunrise/sunset.
• Remote control : Accessible via the Wiser app and by double auxiliary push button.
• Versatile installation : Suitable for new residential or renovation, easily replacing conventional controls.

The Wiser Odace S940567W roller shutter switch in anthracite grey is designed to control wired roller shutters with advanced automation features. It allows you to program various scenarios to open and close the shutters as needed and simulate a presence thanks to its integration with weather parameters such as indoor/outdoor temperature and sun schedules. This device combines practicality and technology, offering local push-button and remote control via the Wiser app, as well as with a double auxiliary push button.

The S540567W is composed of a pusher mechanism with a RAL9003 white hubcap and an integrated LED signaling system, ensuring intuitive operation. Its built-in mounting bracket makes it easy to install on a wall box and allows for the addition of a matching Odace trim plate, available separately in the same color. It easily replaces a traditional roller shutter switch and can be recessed into the wall surface for a flush aesthetic look.

The performance of this product meets the most rigorous standards, including VDE, NF, SEMKO, FIMKO, CE, EAC, NEMKO, as well as specific standards such as EN 60730-2-7, EN 60669-2-1, EN 301-489-17, EN 300-328, 2014/35/EU and 2014/30/EU. In addition, it is Green Premium certified, ensuring long-lasting and environmentally friendly performance. Available in three colours: white, aluminium and anthracite grey to suit different interior styles.

Features Wiser Odace S940567 - 4A zigbee roller shutter switch anthracite

• Product Brand: Schneider Electric

• Range: Odace

• Type of product or equipment: Connected shutter control

• Related Accessories: Wiser hub generation 2

• Mobile App Name: Wiser Home

• Sale by indivisible quantity: 1

• Application of the device: Roller shutter control

• Product overview: Mechanism with mounting bracket and hubcap

• Technology Type: Electronics

• Actuator: Push Button

• Device Mounting: Flush

• Method of fixing: By screws and claws

• Charging Type Motor: 500 VA at 230 V 50 Hz AC

• [EU] Rated Operating Voltage: 230V AC 50Hz

• Rated current: 4 A

• Power Factor: 0.6

• Standby power: Max. 0.4 W

• Fuse rating to be paired: 10 A

• Colour shade Hubcap: black (RAL 9005)

• Surface Finish: Matte

• Surface Treatment: Untreated

• Matter:

• ASA + PC: hubcap

• PC (polycarbonate) GF10 FR: envelope

• PC (polycarbonate) GF10 FR: mounting bracket

• Local Signalling Programmable: 1 LED (green/red)

• Signaling Function: Indicator light on when output is activated

• Order Type:

• Remote control via dual auxiliary push button

• Remote Control Wiser App Device Programming

• Local control of blinds/roller shutters

• Product Data Sheet

• Specifications

• Oct 9, 2025 1

• Disclaimer: This documentation is not intended to replace and cannot be used to determine the suitability or reliability of these products for any specific application

• Wiser Home App Software Name: Upgrade Firmware

• Wiser Home App: Adjust the awning movement time

• Wiser Home App :d set LED status

• Wiser Home App: Weekday switching

• Wiser Home App: astro function

• Wiser Home App: Shuffle Function

• Wiser Home App: management of the position of blinds and slats

• Wiser Home App: Time Control

• Max Number of Connected Devices: Zigbee: (Smart Device)

• Communication Network Type: Zigbee Wireless (2.4GHz), 10mW at < 50m

• System Requirements Android 5.1 or higher Wiser App

• Apple iOS 10.3 or higher Wiser App

• Connected auxiliaries Unlimited number of dual push buttons, distance: 50 m

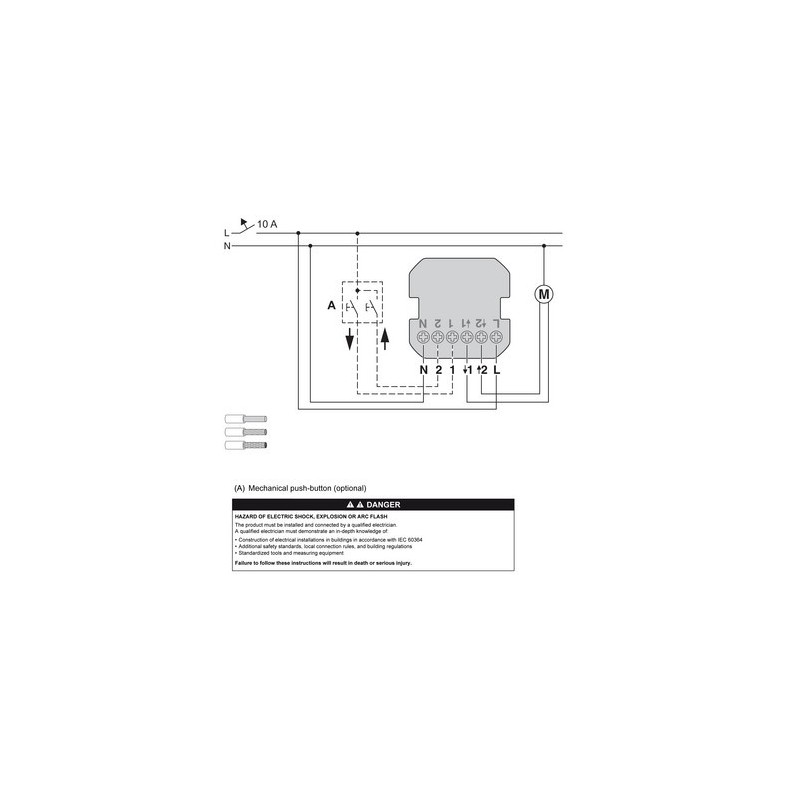

• Wiring Configuration With Neutral

• Connection Mode Screw Terminals

• Number of free connectors 4

• Terminal clamping capacity 1.5... 2.5 mm² for rigid or flexible cable(s)

• 1,5… 2.5 mm² for Rigid Twisted Multistrand Cable(s)

• Shape of the Pozidriv No. 1 screw head and combi

• Tightening torque 0.5 N.m

• Flush mounting bracket

• Installation Type Indoor Installation

• Packaging Type: Carton

• Operating ambient air temperature: 5... 40 °C

• Ambient temperature for storage: 5... 40 °C

• IP protection degree IP20

• Impact resistance IK IK02

• Mounting depth 29 mm

• Depth 41 mm

• Width 73.9 mm

• Height 73.9 mm

• Net Weight 0.047 kg

• European Regulation 2014/35/EU - Low Voltage Directive

• 2014/30/EU - Electromagnetic Compatibility

• CE Product Certifications

• Chemical Resistance Lactic Acid Resistant

• Dilute quaternary ammonium resistant

• Resistant to diluted bleach

• Diluted ammonia resistant

• Resistant to soapy water

• Windshield washer resistant

• Hydrogen peroxide resistant 10 volumes

• Hexane resistant
