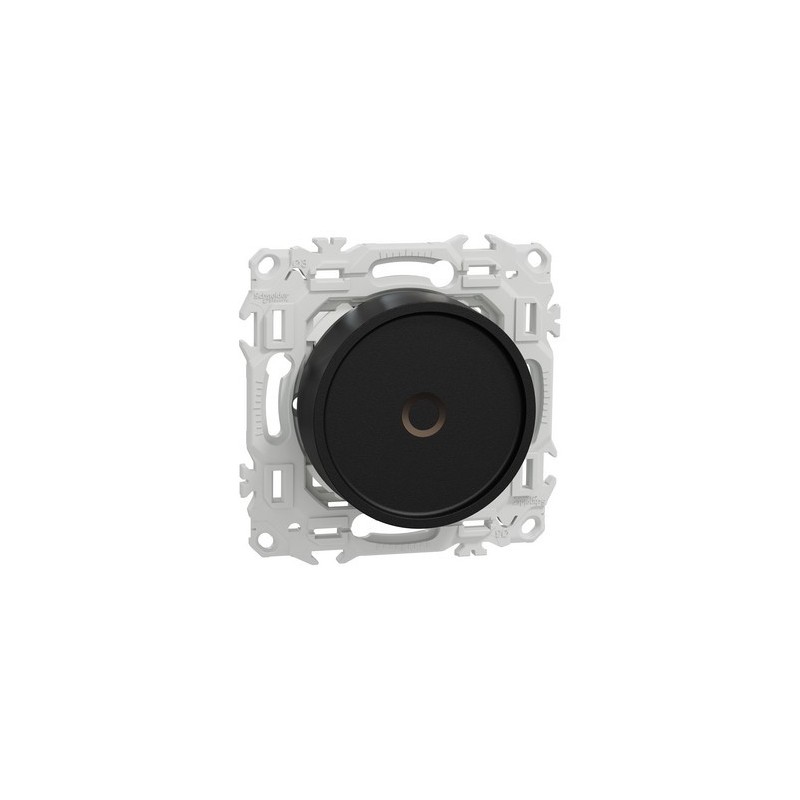

Wiser S940513 Odace - 2-wire zigbee LED rotary dimmer in anthracite

The Wiser Odace rotary light switch allows S940513 to control the lighting ON/OFF and dim remotely via the Wiser App, in an elegant anthracite colour.

• Refined and modern design, flush finish

• Manual control or via voice assistant/smartphone to manage roller shutters

• Allows you to adjust the blinds' shutters and slats for optimal light control and privacy

• Compatible with the Wiser app for remote control and intelligent automation

• Automation according to weather parameters for more comfort and efficiency

Highlights of the connected dimmer:

• Local and remote control via the Wiser app for flexible lighting management.

• Rotary dimmer to adjust the light intensity as required.

• Easy installation as a replacement for a conventional switch, suitable for residential.

This Odace roller shutter switch is designed for easy and intuitive management of shutters, manually, via a voice assistant or smartphone, locally or remotely. It is compatible with the Wiser app, allowing remote control and automation of the shutters according to predefined schedules or events.

What do I receive when I buy this reference?

The Odace control comes with its integrated mounting bracket and paint cover. It is to be combined with an Odace, Odace Metal, Odace Architect or Odace Origine trim plate.

What are the advantages of installation?

It allows you to set up automation scenarios and programming to adjust the shutters according to indoor and outdoor lighting as well as weather conditions, for energy efficiency and optimal comfort. It is necessary to install this connected roller shutter switch on a wired operated roller shutter motor.

What standards and norms does the product meet?

Made with premium and recycled materials (57% on average across the range), with IP21D and IK04 protection ratings, Odace offers increased longevity and a controlled environmental impact.

Characteristics Wiser S940513 Odace - 2-wire zigbee LED rotary dimmer in anthracite :

• Product Brand Schneider Electric

• Odace range

• Number Type NH3516

• Type of product or equipment Connected drive

• Name Mobile App Wiser Home

• Product presentation Mechanism with mounting bracket and hubcap

• Device Application Lighting Control

• Mounting the Flush Device

• Fastening method By screws and claws

• Single Pole Switch Function

• Drive Type Universal

• Drive Control Rotary Pusher Type

• Charging Type Incandescent Lamp: 0...200 W at 230 V 50 Hz AC

• Halogen lamp: 14...150 W at 230 V 50 Hz AC

• TBT Halogen Lamps: 14...150 VA at 230 V 50 Hz AC

• LED lamp: 7...100 VA at 230 V 50 Hz AC

• [EU] rated operating voltage 230 V AC 50 Hz

• Standby power consumption Max. 0.4 W

• Fuse rating to be matched 16 A

• Protection Type Electronic short circuit and automatic overload protection

• Colour Black (RAL 9005)

• Surface Finish Matt

• Untreated surface treatment

• Local Signage Programming Indication: 1 LED (Green, Orange and Red)

• Total number of strands 4

• Number of Outputs 1

• Control type Local control dimming actuator dimming control +/-

• Remote control by auxiliary push button, function on/ switch

• stop

• Remote control via auxiliary push button, dimming control +/-

• Remote control function on/off switch

• Remote control control of the variation +/-

• Local control function on/off switch

• Remote control device programming

• Product Data Sheet

• Specifications

• Oct 9, 2025 1

• Disclaimer: This documentation is not intended to replace and cannot be used to determine the suitability or reliability of these products for any specific application

• Software Name Wiser Home App: Variation Range Control

• Wiser Home App: Overtaking Control

• Wiser Home App :p rogrammer switching time

• Wiser Home App: Enable Timer Mode

• Wiser Home App: dimming mode management

• Wiser Home App: Enable Brightness/Memory Function

• Wiser Home App: Enable Timer / Overshoot Time Mode

• Wiser Home App: Upgrade the firmware

• Wiser Home App: Load Control

• Wiser Home App :d set LED status

• Wiser Home App: Trigger parameter management

• Wiser Home App: Weekday switching

• Wiser Home App: astro function

• Delay range 1 sec... 24 hours (overrun)

• Using the Switch Dimming Control +/-

• Max number of Zigbee connected devices: 15

• Communication Network Type Zigbee 3.0 (2.4 GHz), 2.5 mW at < 50 m

• System Requirements Android 5.1 or higher Wiser App

• Apple iOS 10.3 or higher Wiser App

• Connected auxiliaries Unlimited number of push buttons, distance: 50 m

• Connection Mode Screw Terminals

• Number of free connectors 4

• Terminal clamping capacity 1.5... 2.5 mm² for rigid or flexible cable(s)

• Shape of the Pozidriv No. 1 screw head and combi

• Tightening torque 0.5 N.m

• ASA + PC material: hubcap

• ASA + PC: button

• PC (polycarbonate) GF10 FR: envelope

• PC (polycarbonate) GF10 FR: mounting bracket

• Wall Mounting Bracket

• Installation Type Indoor Installation

• Lot Quantity 1 carton

• Mounting depth 29 mm

• Depth 48 mm

• Width 73.9 mm

• Height 73.9 mm

• Net Weight 0.063 kg

• Chemical Resistance Lactic Acid Resistant

• Dilute quaternary ammonium resistant

• Resistant to diluted bleach

• Diluted ammonia resistant

• Resistant to soapy water

• Windshield washer resistant

• Hydrogen peroxide resistant 10 volumes

• Hexane resistant

• Sale by indivisible quantity 1

• Environment

• Ambient air temperature in operation 5... 25 °C

• Ambient temperature for storage -25... 70 °C

• IP protection degree IP20

• Impact resistance IK IK02

• 2 Oct 9, 2025

• Standards EN 60730-2-7 EN 60669-2-1

• European Regulation 2014/35/EU - Low Voltage Directive

• 2014/30/EU - electromagnetic compatibility

• CE Product Certifications
