Wiser S9420502 Odace - 2A Wired Smart Thermostat White

Schneider Electric's Odace Wiser S920502 Wired Connected Thermostat provides temperature control for hydronic heating and cooling systems with an LED display and ZigBee 3.0 connectivity.

• Sleek, modern design, flush finish

• Wired connected thermostat with LED display for simplified temperature management

• Compatible with gas boilers, heat pumps and oil boilers

• Zigbee 30 connectivity for easy integration into smart homes

• Easy installation into existing systems

What is the product used for? Where to install it?

The Wiser Odace Smart Thermostat offers a smart control solution for managing heating and cooling in any interior. This thermostat controls the heating systems paired with the Wiser gateway via the app (electric heating, water heating and heat pumps).

What do I receive when I buy this reference?

The Odace thermostat comes with its integrated mounting bracket and paint cover. It is to be combined with an Odace, Odace Metal, Odace Architect or Odace Origine trim plate.

What are the advantages of installation?

Its intuitive LED display allows for a clear and precise display of settings, for easy temperature management. Zigbee 3.0 connectivity ensures fast integration into smart homes for better remote control.

What standards and norms does the product meet?

Made with premium and recycled materials (57% on average across the range), with IP21D and IK04 protection ratings, Odace offers increased longevity and a controlled environmental impact.

Features Wiser S920502 Odace - 2A Onyx Black Wired Smart Thermostat

• Odace range

• Type of product or equipment Connected thermostat

• Product presentation Mechanism with mounting bracket and hubcap

• Related accessories Wiser hub generation 2

• Name Mobile App Wiser Home

• Product Specific Application Heating and Cooling

• Packaging Type Enclosure

• Lot quantity 1 piece

• Additional information Fuse not included

• Mounting the Flush Device

• Type of technology Electronics

• Fastening method By screws and claws

• Colour shade White (RAL 9003)

• Temperature Setting Range 5... 45 °C

• Measurement accuracy +/- 0.1 °C

• Type and composition of contacts 1 NO 1 NF

• Load interrupting current 2 A resistive

• [EU] rated operating voltage 230 V AC 50 Hz

• Fuse rating to be paired 10 A

• Number of screw terminals

• Terminal clamping capacity 2 x 1.5... 1 x 2.5 mm² rigid cable(s)

• 2 x 1.5... 1 x 2.5 mm² multi-strand cable(s)

• 2 x 1.5... 1 x 2.5 mm² flexible cable(s)

• Wire stripping length 8 mm

• Local Signaling 2-digit display (white) for temperature 3 LEDs (red/blue)

• ASA + PC material: hubcap

• PC (polycarbonate) GF10 FR: mounting bracket

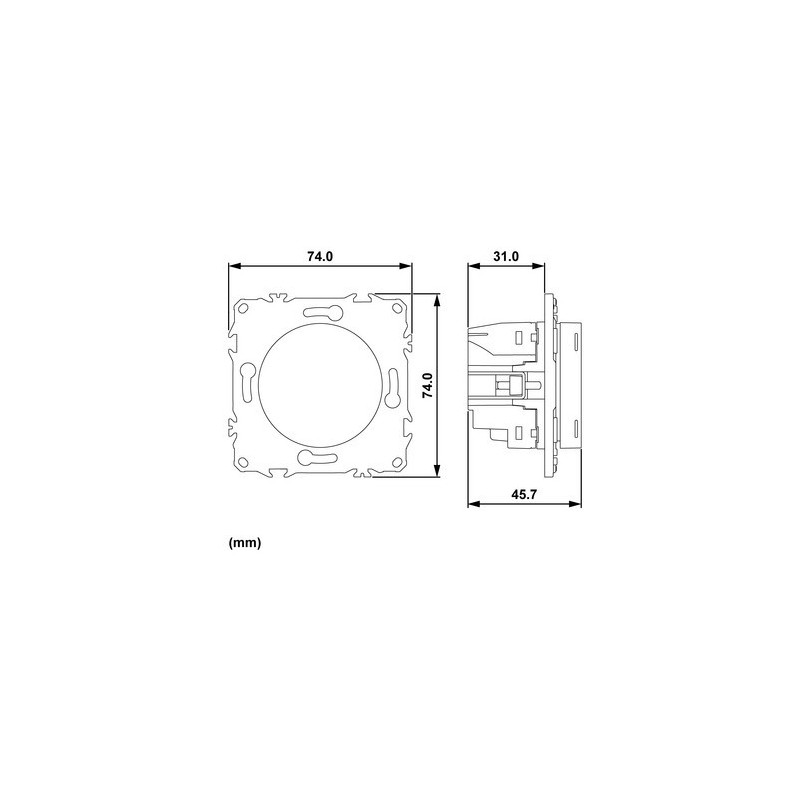

• Height 74 mm

• Width 74 mm

• Product Data Sheet

• Disclaimer: This documentation is not intended to replace and cannot be used to determine the suitability or reliability of these products for any specific application

• Depth 46 mm

• Net Weight 0.109 kg

• Chemical Resistance Lactic Acid Resistant

• Dilute quaternary ammonium resistant

• Resistant to diluted bleach

• Diluted ammonia resistant

• Resistant to soapy water

• Windshield washer resistant

• Hydrogen peroxide resistant 10 volumes

• Hexane resistant

• Surface Finish Matt

• Untreated surface treatment

• Ambient temperature for storage -5... 50 °C

• Operating Ambient Air Temperature 0... 35 °C

• EN 60730-1 standards

• EN 60730-2-9

• IN 300328

• EN 50566

• Eu.BAC Product Certifications

• Impact resistance IK IK04

• IP protection degree IP30
