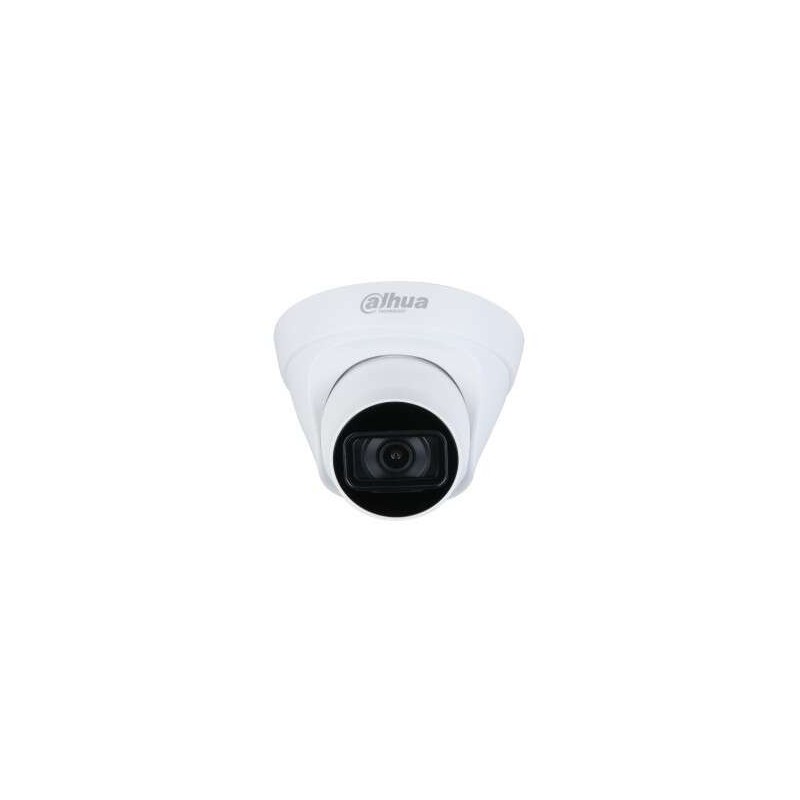

Dahua IPC-HDW1230T-S6 - 2MP 2.8mm PoE IR 30m Camera

Dahua IPC-HDW1230T-S6 2MP 2.8mm PoE IR 30m Camera

Optics and image sensor

This camera is equipped with a 2.8 mm fixed lens combined with a 1/2.8" CMOS sensor, offering an optimal compromise between wide angle of view and level of detail. The maximum resolution of 2 MP allows for an image in 1920 x 1080 pixels, suitable for identifying people and objects in most video surveillance environments. The minimum illumination of 0.01 lux at F2.0 ensures good low-light sensitivity, reducing the need for additional lighting. Horizontal 101° / 86°, vertical 54° / 47° and diagonal 119° / 103° viewing angles allow for wide coverage while limiting dead zones, making it a versatile solution for monitoring medium-sized indoor or outdoor spaces.

Video performance and image processing

The camera delivers a smooth video stream at 25/30 frames per second in 2 MP (1920 x 1080) resolution, ensuring detailed rendering of movements and precise exploitation of recordings. Advanced image enhancement features including Rotation Mode, Digital Wide Dynamic Range (DWDR), 3D NR Noise Reduction, HLC (Highlight Compensation) and BLC (Backlight Compensation) optimize rendering in challenging lighting conditions, such as backlighting, high-contrast areas, or dimly lit scenes. Digital watermarking ensures the integrity of images by authenticating video streams, increasing the reliability of recordings for control or evidentiary purposes.

Infrared and night vision

The camera incorporates an infrared illumination system with a maximum range of 30 meters, ensuring effective visibility in total darkness. Combined with the minimum illumination of 0.01 lux and noise reduction algorithms, this IR range helps maintain an usable image day or night, without excessive sharpness degradation. Automatic IR activation management ensures a smooth transition between day and night modes, limiting overexposure or underexposure during rapid changes in ambient light.

Compression, Stream, and Network Compatibility

The camera supports multiple video compression formats, including H.264B, H.264, H.264H, and H.265, allowing for fine-tune the quality-to-weight ratio of streams based on available bandwidth and storage capacity. The management of 2 simultaneous streams differentiates between a high-definition main stream for recording and a lighter secondary stream for remote or mobile viewing. The network interface is via a 10/100 Base-T RJ45 connector, ensuring simple integration into most Ethernet infrastructures. ONVIF (Profiles S and T) and CGI compatibility provides extensive interoperability with many third-party NVRs, VMSs, and software solutions, making it easy to integrate into existing or multi-brand video surveillance systems.

Power, Consumption, and Deployment

Power can be provided via 12 VDC or PoE (IEEE 802.3af), greatly simplifying deployment by reducing the wiring required through power over the network cable. The maximum power consumption of 3.3 W, which can be up to 4.2 W with all functions active, remains low and allows integration into multi-tenant PoE installations without overloading switches. This power flexibility makes the camera suitable for both new installations and upgrades to existing infrastructure, depending on the site's electrical and network constraints.

Mechanical, Adjustments and Installation

The camera offers extensive adjustment freedom with a horizontal rotation range (pan) from 0° to 360°, tilt from 0° to 78° and rotation from 0° to 360°, allowing the field of view to be precisely oriented during installation. It is designed for wall or ceiling mounting, making it easy to adapt to different types of environments, from corridors and access areas to facades and ceiling surfaces. These mechanical adjustment possibilities guarantee quick implementation and precise alignment to the area to be monitored, reducing the need for subsequent repositioning.

Environmental robustness and conditions of use

With an IP67 certification, the camera has excellent dust and water resistance, allowing for outdoor installation in exposed environments. The operating temperature range of -40 °C to 60 °C allows it to operate reliably in a wide variety of climates, from cold to hot regions, without the need for specific additional protection. This environmental robustness guarantees continuity of service in difficult weather conditions such as rain, snow, high humidity or high temperature ranges.

Dimensions, weight and physical integration

The camera has compact dimensions of 8.5 cm x Φ10.9 cm, allowing discreet integration on most supports, without significant visual impact on the architecture of the premises. Its weight of 0.25 kg makes it easy to install on lightweight structures while offering sufficient stability once fixed, limiting the risk of vibrations or time lag. This reduced size also simplifies handling during installation and maintenance, while allowing the use of junction boxes or additional brackets if required.

Features of Dahua IPC-HDW1230T-S6 - 2MP 2.8mm PoE IR 30m Camera:

• Fixed Lens: 2.8mm

• 1/2.8'' CMOS sensor

• Maximum resolution: 2MP

• Infrared distance: 30 meters

• Image enhancement function: Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking

• Power supply 12 VDC/PoE (802.3af), max. 3.3W, max 4.2W

• IP67

• Angle of view: H: 101° / 86°; V: 54° / 47°; D: 119° / 103°

• 25/30 fps@2MP (1920x1080)

• H.264B/H.264/H.264H/H.265 video compression

• Minimum illumination 0.01 lux@F2.0

• 2 streams

• Pan: 0°-360° Tilt: 0°-78° Rotation: 0°-360°

• ONVIF (Profile S/T), CGI compatibility

• 1 RJ45 (10/100 Base-T)

• Mounting: wall, ceiling

• Operating Temperature -40°C to 60°C

• Dimensions: 8.5cm x Φ10.9cm

• Weight: 0.25Kg
