Vanderbilt SPC5330.320-L1 - 8/128 Zone NFA2P Large Enclosure Alarm Panel with Integrated WEB Server
IP-native anti-intrusion system with an NFA2P embedded web server
Comes with documentation and programming software on CD-ROM.
The SPC5320.320-L1 combines intrusion detection and access control functionalities in 1 single product.
It can be expanded to 128 inputs (8 basic)' 128 outputs (6 basic)' 16 keypads' 8 door controllers (16 gates) and 16 transponders.
The control panel has 2 X-Bus interfaces (2 branches or 1 loop)' 16 independent monitoring sectors' of 500 users with different access levels.
It can accommodate 2 PSTN and/or GSM transmission cards and has 2 logbooks of 10,000 events each for intrusion and access control.
The system can be expanded via radio modules' and can manage up to 120 SiWay radio detectors and 50 radio controls.
It also integrates a WEB server and a native IP interface allowing it:
- transmit your alarms to IP recipients
- give secure web access to the user via the internet (HTTPS protected access), for daily use via a PC, an iPhone or Android application
- to give secure web access to the installer via the Internet' for the configuration and maintenance of this system.
This control panel has the added bonus of audio and video alarm verification function via IP.

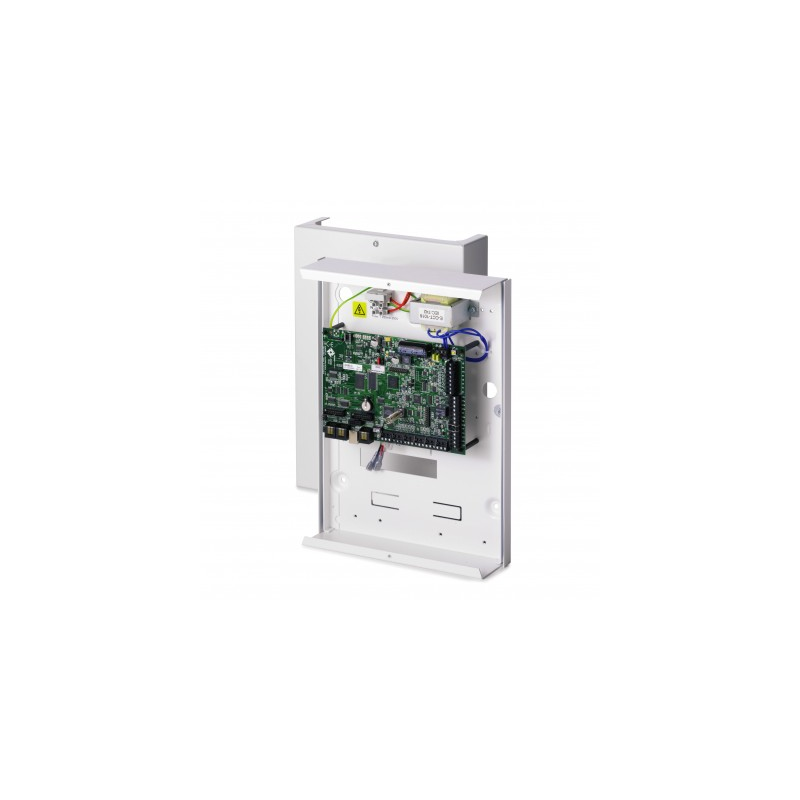

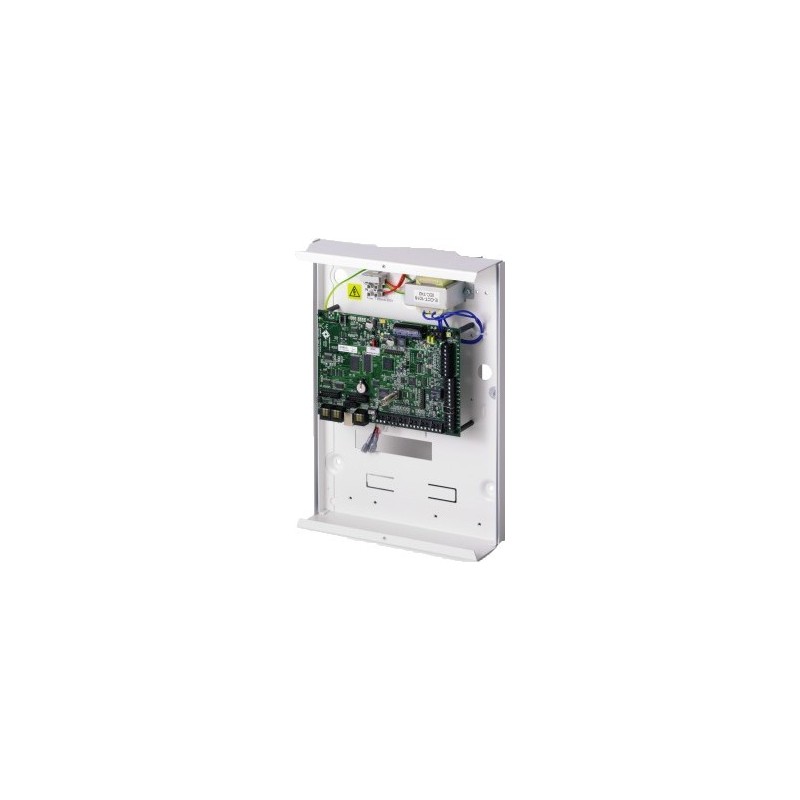

The control unit is delivered in a metal case protected at the opening' allowing the insertion of 1 7Ah battery and 1 transponder card (SPCE652, SPCE452, SPCA210).
The SPC Pro configuration software as well as all the installation and user manuals are supplied on a CD-ROM delivered with each control panel.
Vanderbilt SPC5320.320-L1 alarm panel features:
|
Firmware |
V3.6.6 |
|
Areas of Supervision |
16 |
|
Maximum number of user codes |
500 |
|
Remote controls |
Up to 50 |
|
Radio panic buttons |
Up to 128 |
|
Event Memory |
10,000 intrusion events |
|
Tongue |
Multi-language (English + 4 languages to choose from) |
|
Number of Entries on the Motherboard |
8 |
|
Maximum number of wired inputs |
128 |
|
Maximum number of radio inputs |
120 (takes the place of wired inputs) |
|
End-of-line resistor |
Default 2 x 4K7. 15 possible combinations |
|
Maximum number of outputs |
128 |
|
Number of relays on the motherboard |
1 flash (30 Vdc / 1 A - on resistive load) |
|
Number of open manifolds on the motherboard |
5 programmable outputs, 2 of which are predefined in indoor and outdoor siren (current of 400mA max. per output - on resistive load) |
|
Number of Doors Managed |
16 doors in, or 8 doors in/out |
|
Number of card readers |
Max. 16 |
|
Radio Module |
Optional (SPCW110) |
|
Alarm Verification Area |
16 alarm verification zones with up to 4 IP cameras and 16 audio modules |
|
Video |
Up to 16 images before and 16 images after alarm (JPEG, 320x240, 1 image / sec. max.) |
|
Audio |
Up to 60 sec. before and 60 sec. after the audio recording alarm |
|
Calendar |
32 calendars (53 weeks, associable with users, zones, entrances, exits, keypads, doors) |
|
Macro Language |
PLC that can manage 256 conditions, and drive 128 processes (cause and effect) |
|
Number of cards per bus |
Max. 40 (16 keypads, 8 door controllers, 16 transponders) |
|
Interfaces |
2 X-BUS (2 branches or one loop), |
|
Self-monitoring contact |
Self-protection when opening |
|
Main Supply Voltage |
230 VAC, +10%/ -15%, 50 Hz |
|
Operating Intensity |
Max. 190 mA at 12 Vdc |
|
Optimal operating current |
Max. 170 mA at 12 Vdc |
|
Output voltage |
13-14 Vdc in normal operating conditions (powered by 230V, and battery charged) |
|
Auxiliary power (nominal) |
Max. 750 mA at 12 Vdc |
|
Battery Type |
YUASA NP17-12FR (7 Ah), not included |
|
Operating Temperature |
0 to +40 °C |
|
Colour |
RAL 9003 (white) |
|
Weight |
6.400 kg |
|
Dimensions (W x H x D) |
326 x 415 x 114 mm |
|
Box / Enclosure |
Small metal case (1.2mm steel) |
|
Certification |
EN50131-1 / EN50131-3 / EN50131-6, Grade 2, Class II |
SPC5330.320-L1
1 Item
Data sheet
- Security
- Central
- Type
- Mixed
- Standard
- NFA2P
Specific References
- EAN13
- 4025515470748
