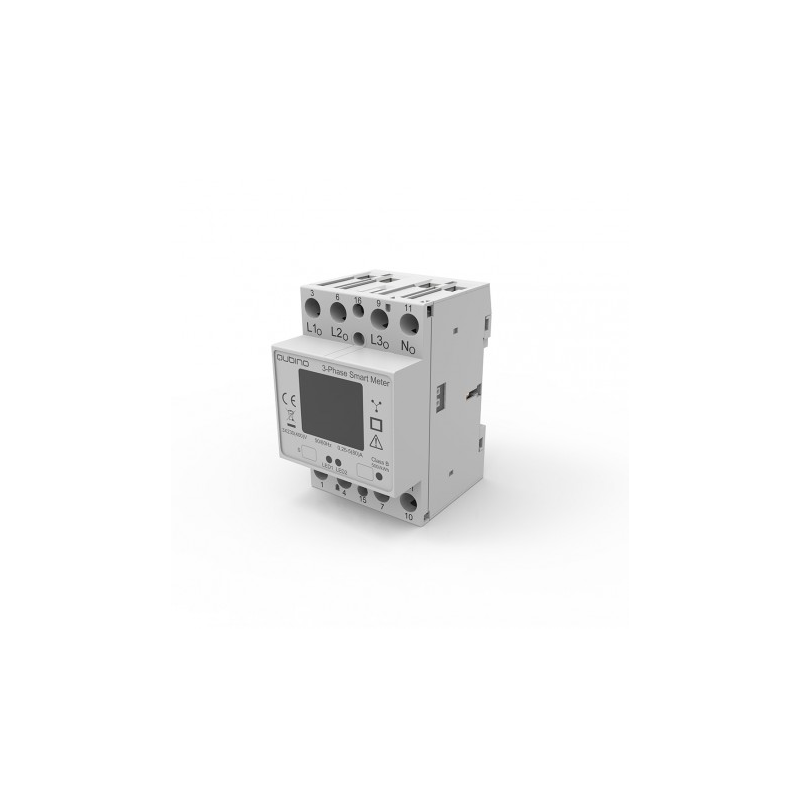

Qubino ZMNHXD1 three-phase energy meter Z-Wave Plus Rail DIN

The Qubino ZMNHXD1 meter can measure the energy consumed on a three-phase meter up to 80 amps.

The module can also control electrical devices (on/off switching) with the addition of the following external relays:

• BICOM432-40-WM1 bistable switch (32A), controlled by optical (IR) communication port
• Contactor (32A) IKA232-20 / 230 V controlled by the output on terminal 5

Qubino ZMNHXD1 features :

• Measurement of the overall consumption of a three-phase electrical installation

• Measurement of the consumption of an electrical appliance operating in three-phase (heat pump, induction oven, ...)

• Provides voltage, current, active, reactive and apparent power data, and power factor

• Integrates the Z-Wave 500 series chip (Z-Wave+)

• 250% faster communication compared to standard Z-Wave devices

• LCD display screen (7+1 digit, 100Wh resolution)

• Operating temperature -10 to 40 °C

• Optical communication (IR) port for external relay BICOM432-40-WM1

• Output for connecting an external contactor IKA232-20 / 230 V

• Installation in the electrical panel

• Power supply: 3X230V/400V

• Consumption: <8VA

• Reference current (Iref): 5 A

• Maximum current (Imax): 80 A

• Minimum current (Imin): 0.25 A

• Starting current: 20mA

• Details:

  • Power and active energy:

    • EN 62053-21: Class 1

    • EN 50470-3: class B

  • Reactive energy:

    • EN 62053-23: class 2

• Radio transmission frequency: 868.42MHz, Z-Wave

• Range: up to 30 m indoors (depending on surrounding materials)

• Operating temperature: -10~55°C

• IP Protection: IP20

• Dimensions (W x H x D): 84 x 65 x 53.6mm

• Weight: 220g

• Certifications: CE, RoHs
