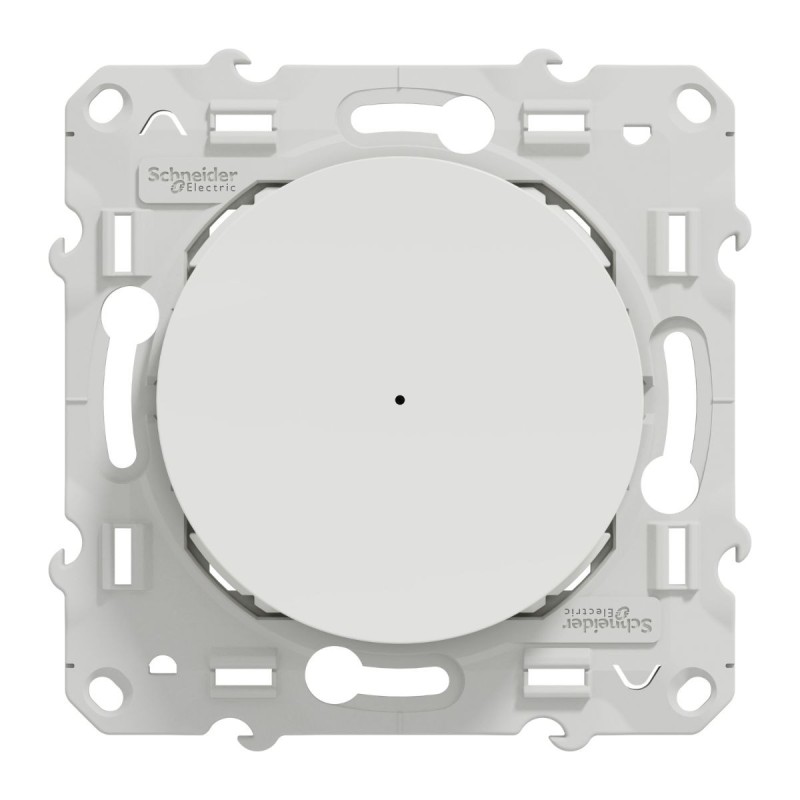

Wiser Odace S520522W Push Drive Switch 2 Wire Zigbee

Wiser Zigbee S520567W push drive switch

With the connected universal LED drive switch (hereinafter referred to as the drive), you can switch and reduce ohmic, inductive or capacitive loads.

Command Options

House order:

To control the drive via the Wiser app, you will need the Wiser gateway. Part Order:

To control the drive with other Wiser devices, it can be paired with other Wiser devices in the same Zigbee network.

Direct operation:

you can always order the drive directly on site.

You can also connect many mechanical switches. Duties

• Automatic load detection

• Thermal protection, overload resistant, short circuit protection

• Soft start

Characteristics Wiser Odace S520522W push drive switch 2 wire Zigbee :

• Rated voltage: 230 VAC ∼, 50 Hz

• Rated power: Standby: 0.4 W max.

• Neutral driver: not required

• Connection terminals: Screw terminals for max. 2 x 2.5 mm2, 0.5 Nm

• Expansion unit: Single switch, unlimited number, max. 50 m

• Fuse protection: Circuit breaker 16 A

• Operating frequency: 2405–2480 MHz

• Max. transmitted radio frequency power: < 10 mW

• Certification: Zigbee 3.0
