Nodon SIN-4-1-20 - Multifunction Zigbee Module

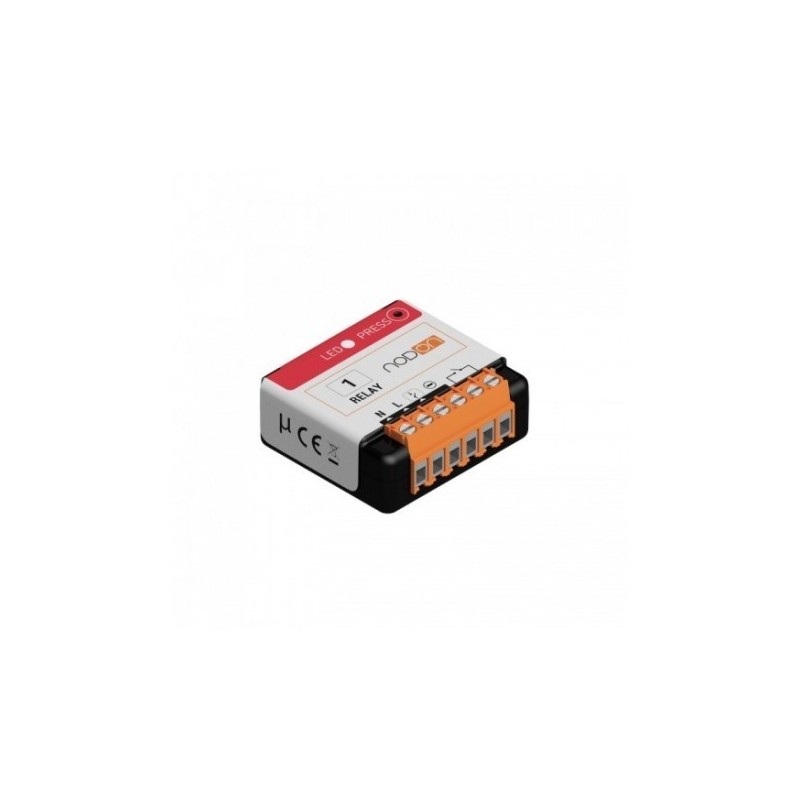

Nodon SIN-4-1-20 Multifunction Zigbee Module

The SIN-4-1-20 Zigbee Multifunction Module allows you to control a garage door, a gate, a radiator, a socket, a boiler, etc.

The Nodon SIN-4-1-20 Multifunction Module allows you to control your entire home: gate, garage door, electrical outlet to which you have connected a screen, your boiler or water heater...

The Nodon SIN-4-1-20 Multifunction Module is Zigbee 3.0 certified and works with Zigbee-compatible ecosystems and voice assistants (Amazon Echo, Jeedom, etc.).

Featuring 3680W switching capacity and potential-free output, it makes your home or building connected. Ultra compact, the module can be installed in >30mm flush-mounted pots or on the electrical panel thanks to the DIN rail box.

Characteristics Nodon SIN-4-1-20 Multifunction Zigbee Module:

• Power supply: 230V AC ~ 50Hz

• Switching capacities: 230V AC - 16A

• Power consumption: < 1W

• Max. power: 3680W - Built-in zero crossing

• Radio Protocol: Zigbee 3.0

• Radio frequency band used: 2.4 GHz

• Maximum Radio Power: +10dBm

• Radio range: up to 40m indoors

• Operating temperature: -20°C to 60°C

• Ingress protection: IP 20

• Device ID Type: On/Off Output (0x0002)

• Commercial warranty: 2 years
