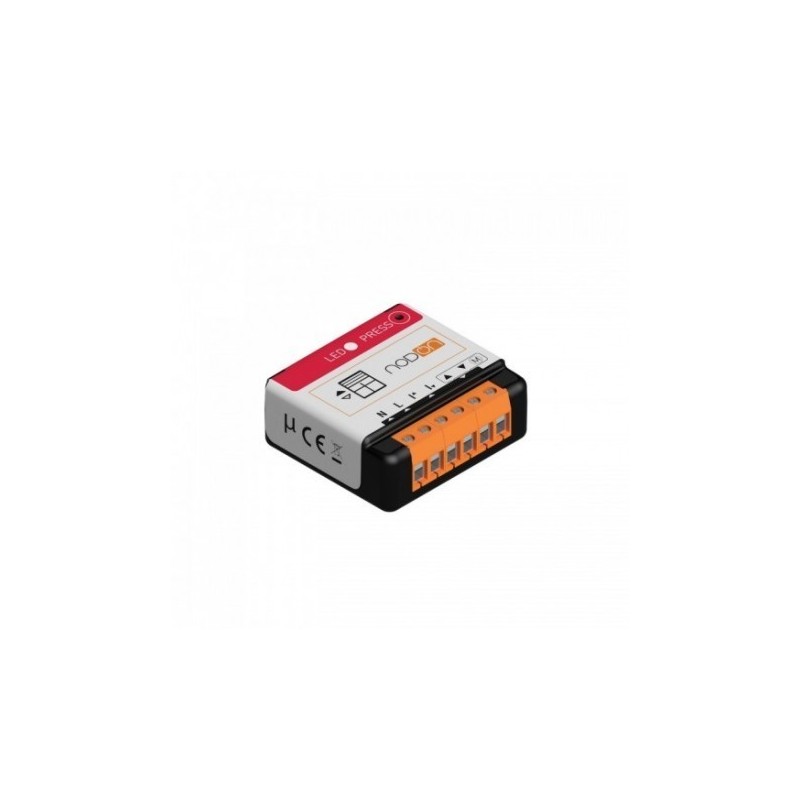

Nodon SIN-4-RS-20 - Zigbee Roller Shutter Module

The SIN-4-RS-20 Zigbee Module allows you to control your roller shutters

The NODON SIN4-RS-20 Zigbee Roller Shutter Module is installed on your equipment (roller shutter, awning) to make it connected and controllable automatically or remotely thanks to a controller or a Zigbee 3.0 compatible home automation unit.

The NODON SIN4-RS-20 Zigbee Roller Shutter Module is interoperable with the majority of Zigbee ecosystems on the market, this NodOn module is ideal for centralizing the control of roller shutters in a room, a floor or an entire building.

The NODON SIN4-RS-20 Zigbee Roller Shutter Module has a compact size, you can install it in a >30mm recessed pot or directly on the electrical panel with the NodOn DIN Rail Box.

The centralization of your openings and the creation of scenarios becomes possible thanks to this module, installed directly on your equipment and adapted to it thanks to its auto-calibration function.

Characteristics Nodon SIN-4-RS-20 Zigbee Roller Shutter Module

• Power supply: 230V AC ~ 50Hz

• Switching capacities: 230V AC - 3A

• Power consumption: < 1W

• Max. motor power: 280W - 60 Nm Max - Integrated zero crossing

• Radio Protocol: Zigbee 3.0

• Radio frequency band used: 2.4 GHz

• Maximum Radio Power: +10dBm

• Radio range: up to 30m indoors

• Operating temperature: -20°C to 60°C

• Ingress protection: IP 20

• Device ID Type: On/Off Output (0x0202)

• Self-calibration

• Over The Air Update

• Commercial warranty: 2 years
