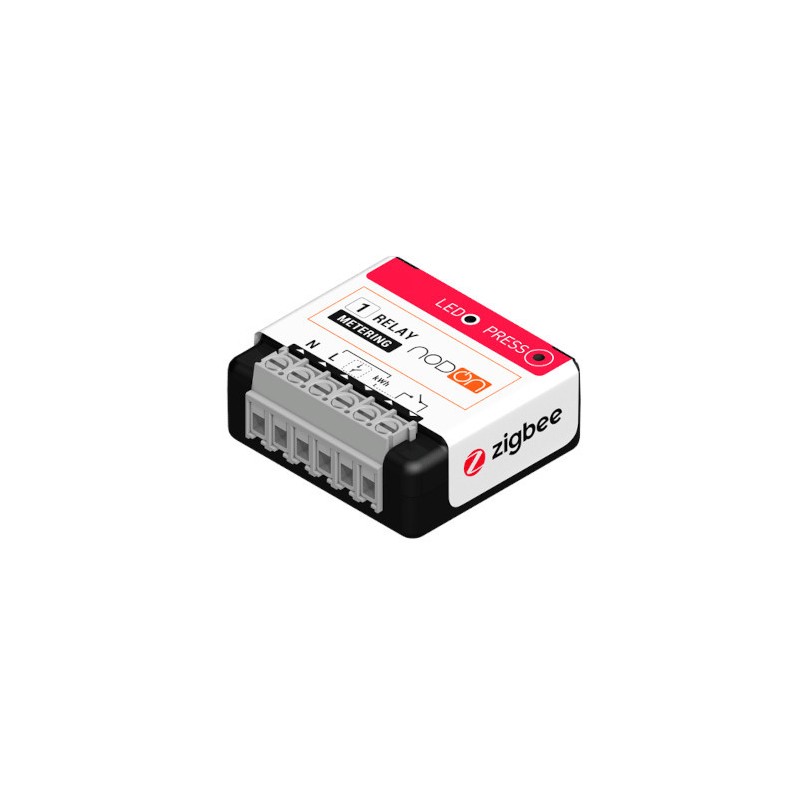

Nodon SIN-4-1-21 - Zigbee multifunction module for consumption measurement

The SIN-4-1-21 Multifunction Module with Zigbee consumption measurement allows you to control a garage door, a gate, a radiator, a socket, a boiler, etc.

The SIN-4-1-21 Multifunction Module with Zigbee consumption measurement also allows you to measure consumption and thus save energy.

The SIN-4-1-21 Multifunction Module with Zigbee consumption measurement can be quickly installed on existing equipment to make it connected and controllable remotely – requires a compatible home automation unit – with a smartphone, by voice or automatically.

Features Nodon SIN-4-1-21 - Zigbee multifunction module for consumption measurement:

• Power supply: 230V AC ~ 50Hz

• Switching capacities: 230V AC – 14A

• Power consumption: < 1W

• Max. power: 3000W – Zero crossing integrated radio rotoculture: Zigbee 3.0

• Radio frequency band used: 2.4 GHz

• Maximum Radio Power: +10dBm

• Radio range: up to 40m indoors

• Operating Temperature:

• The SIN can withstand an ambient temperature:

• Between -20 and 40° in the open air.

• Between -20 and 35°C in a flush-mounted box.

• Between -20 and 40°C in the NodOn DRB (Din Rail Box).

• Between -20 and 40°C in the BPS (NodOn Surface Mounting Box)

• Ingress protection: IP 20

• Device ID Type: Smart Plug (0x0051)

• Commercial warranty: 2 years
