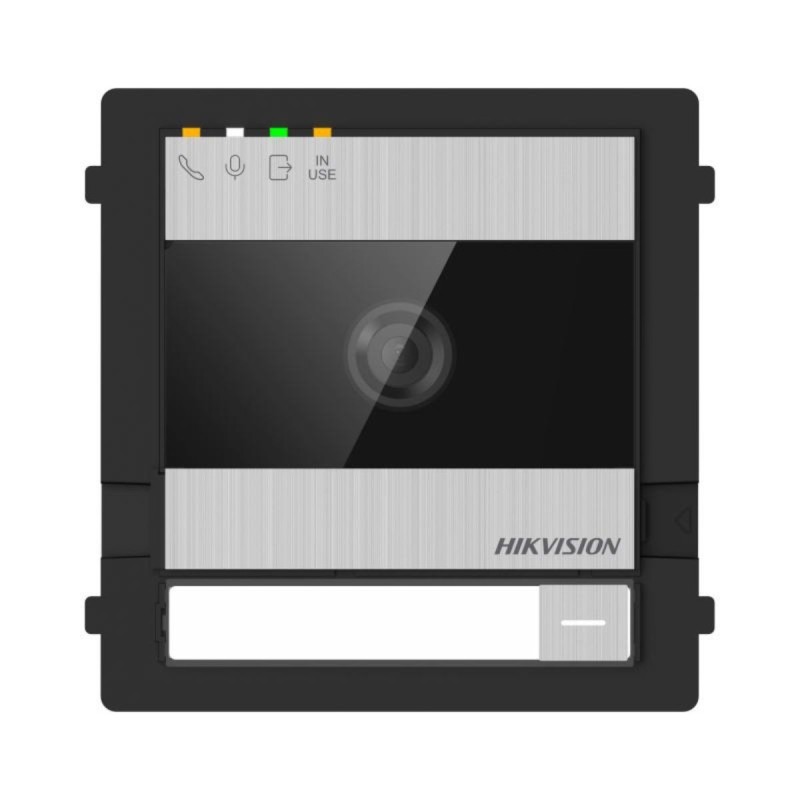

Hikvision DS-KD7003EY-IME2 - 2-Wire Door Station

The Hikvision door station offers exceptional HD image quality with a wide viewing angle and WDR technology. It's easy to use thanks to the mobile setup, multiple indicators, and the ability to adjust single and dual buttons. It supports the control of two locks.

Highlights of the Hikvision Door Panel:

• HD image quality with WDR: Offering a resolution of 2 MP and a horizontal viewing angle of 133° and a vertical angle of view of 82°, the station guarantees clear and detailed images.

• Ease of use: Mobile configuration in AP mode, multiple indicators for different actions, and adjustable buttons make operation simple and intuitive.

• Two-lock control: Supports dual lock control with 48V or 12VDC power supply, providing increased security.

The 2-wire door station is an innovative solution for access control systems, designed to provide superior security and convenience. It stands out for its HD image quality with a resolution of 2 MP and WDR technology that improves visibility in various lighting conditions. The station is equipped with a lens with a horizontal angle of view of 133° and a vertical angle of view of 82°, providing wide coverage of the monitored area. Easy to use, it allows mobile configuration in AP mode and has multiple indicators to indicate door opening, calls in progress, and current usage. The single and double knobs can be adjusted freely as needed. In addition, it supports the control of two locks, thus ensuring enhanced security for residential and commercial installations. This station is ideal for residences, offices, and any type of establishment requiring reliable and efficient monitoring and access control.

Characteristics:

• Operating system: Embedded Linux
• Memory: 4 GB ROM, 256 MB RAM
• Processor: Embedded processor
• Extra Light: IR lights for low light
• Video Standard: H.264
• Goal: 1 goal
• Field of View (FOV): Horizontal: 133°, Vertical: 82°
• WDR: Supported
• Resolution: 2 MP
• Audio Compression: G.711 U, G.711 A
• Audio Input: Built-in omnidirectional microphone
• Audio Output: Built-in speaker
• Audio Compression Bitrate: 64 Kbps
• Audio Quality: Noise Cancellation and Echo Cancellation
• Capacity: 2000 users, 99 indoor stations, 16 substations
• Wired network: 10/100 Mbps via 2-wire interface
• Wi-Fi: AP mode only for configuration
• Interfaces: 2 alarm inputs , 1 exit button, 1 door contact input, 2 RS-485, 1 TAMPER, 6 DIP switches
• Lockout Control: 2 (1 relay, max 30 VDC, 2 A; 1 DC pulse, 20V 4A pulse, 300 mA holding current, 30 ohms max)
• Power supply: 48V by DS-KAD7060EY or 12VDC distributor
• Dimensions: 99.5 mm × 98.5 mm × 35 mm
• Weight: With packaging: 426g, Without packaging: 290g
• Protection Level: IP65 IK08
• Operating temperature: -40° C to 60° C
• Operating Humidity: 10% to 90%
• Power consumption: ≤ 6 W
• Assembly: Surface and recessed
