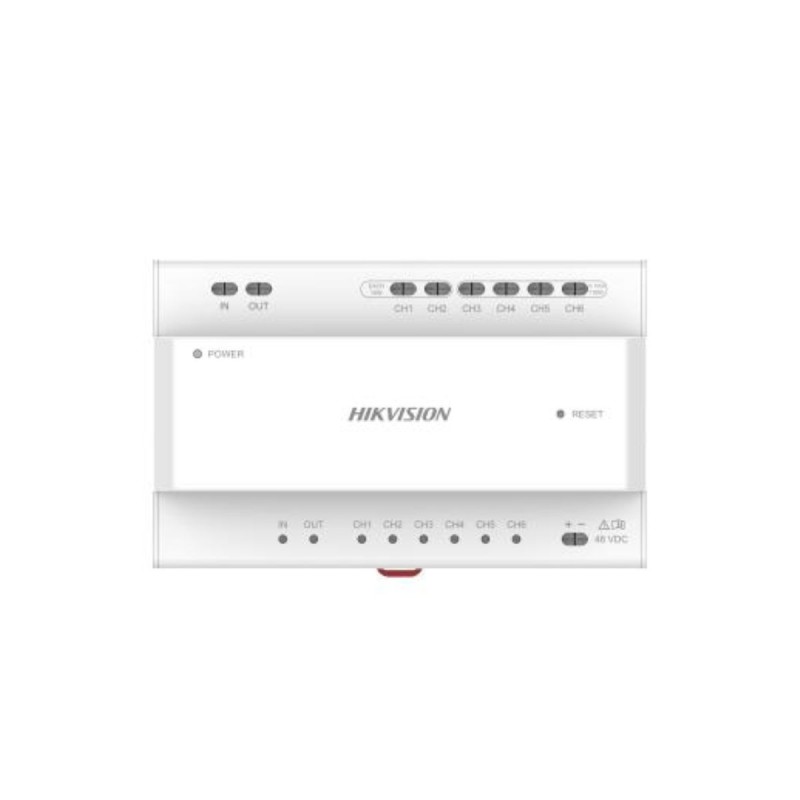

Hikvision DS-KAD7060EY - 2-Wire HD Dispenser for Video Door Phone

The Hikvision DS-KAD7060EY 2-wire HD distributor is a high-performance and reliable solution for simultaneous transmission of power and network signals over two wires. Featuring multiple status indicators and DIN rail installation, it is ideal for use in video door entry systems in multiple buildings.

Highlights of the DS-KAD7060EY 2-wire HD dispenser

• Comprehensive Interface Indicators : Equipped with 8 interface indicators and a reset button, this dispenser allows for easy and quick monitoring of the device's status.

• DIN Rail Installation : Designed for easy and secure DIN rail installation, ensuring effortless integration into various installation environments.

• Simultaneous Signal Transmission : Supports access to door stations, indoor stations, and simultaneous transmission of power and network signals over two wires, providing an efficient solution for communication between multiple buildings.

The Hikvision DS-KAD7060EY 2-Wire HD Dispenser is designed to meet the needs of modern video door entry systems. This device allows for the efficient distribution of network and power signals over two wires, making it easier to install and manage complex communication systems between multiple buildings. With its 8 interface indicators, users can easily check the status of connections and quickly diagnose any potential issues.

The DS-KAD7060EY offers DIN rail installation, which greatly simplifies the integration process into various installation environments, making the device suitable for both new projects and upgrades to existing systems. With the ability to cascade with other DS-KAD7060EY or DS-KAD7060EY-S dispensers, it enables smooth and reliable network communication between multiple buildings, optimizing security and access management.

In addition, the dispenser is designed to operate in a variety of environmental conditions, with an operating temperature ranging from -10°C to 55°C and a humidity of 10% to 90%. This ruggedness ensures reliable performance even in harsh environments. Its compact dimensions (143.7 mm x 92.4 mm x 65.9 mm) allow for discreet installation without compromising efficiency.

Features of the 2-Wire Dispenser for Video Door Phone

• Device Interfaces :
  • Two-Wire Interface: 8 (IN/OUT for cascading, CH1-CH6 for door stations and indoor stations)
  • Power Indicator: 1
  • Signal Indicator: 8
  • Reset Button: 1
• Power supply :
  • Power input: 48 VDC
  • Power Consumption: CH1 to CH2 < 15 W; CH3+CH4+CH5+CH6 < 110 W
• General :
  • Installation: DIN rail installation
  • Operating Temperature: -10 °C to 55 °C (14 °F to 131 °F)
  • Operating Humidity: 10% to 90%
  • Dimensions (W × H × D): 143.7 mm × 92.4 mm × 65.9 mm (5.66" × 3.64" × 2.59")
