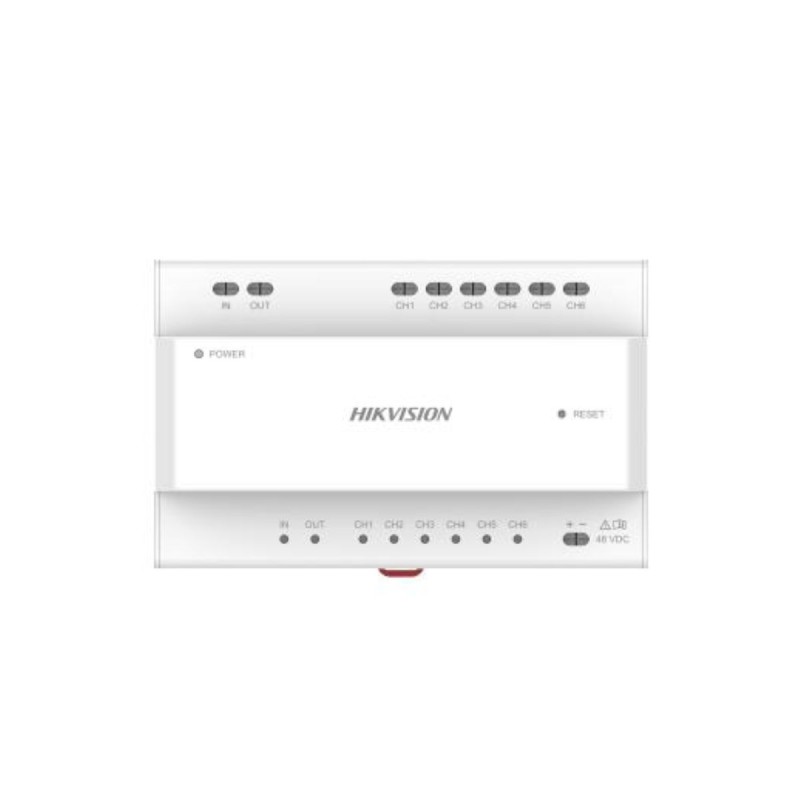

Hikvision DS-KAD7060EY-S - 2-Wire HD Dispenser for Video Door Phone

This product is a cascade communication device for video intercoms, designed for the efficient management of connections between multiple buildings.

Highlights of the DS-KAD7060EY-S 2-wire HD dispenser

• User-friendly design with 8 status indicators and a reset button : Makes it easy to track and manage the status of the device.

• DIN rail installation : Easy to install and compatible with industry standards.

• Supports Cascade Communication for Video Intercoms : Allows the connection of multiple units for centralized and efficient management of video intercoms between different buildings.

The product is a cascade communication device specifically designed for 2-wire video intercoms, ideal for environments that require centralized management of connections between multiple buildings. It is designed to be mounted on a DIN rail, simplifying installation and integration into existing infrastructure. The device has 8 status indicators, providing a real-time overview of its operation, as well as a reset button for quick troubleshooting.

This device supports the cascade of DS-KAD7060EY-S and DS-KAD7060EY units, allowing smooth and efficient communication between different buildings via the video intercoms. It is powered by a 48 VDC source and consumes less than 10 W, ensuring stable performance while saving energy. Designed to operate in a wide range of temperatures (-10°C to 55°C) and humidity (10% to 90%), this product is robust and reliable for various environmental conditions.

Features of the HD 2-wire dispenser

• Device interfaces

  • Network Interface : NA
  • Two-Wire Interface : 8 (IN/OUT for DS-KAD7060EY-S cascade, CH1-CH6 for DS-KAD7060EY cascade)
  • Signal Indicators : 8
  • Power Indicator : 1
  • Reset Button : 1

• General

  • Power supply : 48 VDC
  • Installation : DIN rail mounting
  • Power consumption : <10 W
  • Operating Temperature : -10 °C to 55 °C (14 °F to 131 °F)
  • Operating Humidity : 10% to 90%
  • Dimensions (W × H × D): 143.7 mm × 92.4 mm × 65.9 mm (5.66" × 3.64" × 2.59")
