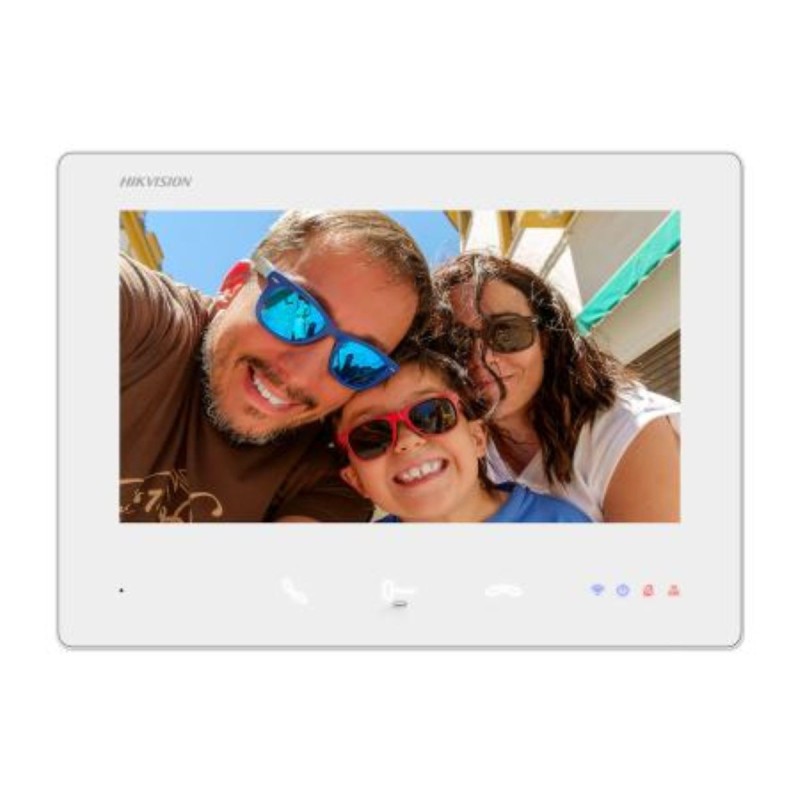

Hikvision DS-KH7300EY-TE2 - 2-Wire IP Indoor Video Door Phone Monitor White

Hikvision Indoor Monitor is a high-definition indoor intercom station equipped with a 7-inch touchscreen with a resolution of 1024*600, providing an intuitive user interface and advanced functions for efficient access and communication management.

Indoor Video Monitor Highlights

• High-definition touch screen: A 7-inch screen with a resolution of 1024*600 for an exceptional viewing experience.

• Ease of use: Plug & play installation with multiple indicators and touch buttons suitable for people with disabilities.

• Advanced Audio Features: Noise cancellation and echo cancellation for crisp and clear audio quality.

The Hikvision video station is a state-of-the-art device designed to provide an optimal user experience in indoor access management. Featuring a 7-inch capacitive touchscreen with an impressive resolution of 1024*600, this station offers an intuitive interface and crisp images. Its design includes three touch buttons as well as a physical button to reset it, all suitable for people with limited mobility.

This station is extremely easy to use thanks to its DEC button configuration and plug & play installation. It supports various connection topologies and has multiple indicators (power, quiet, in use) for instant feedback. In addition, up to four customizable virtual buttons can be configured for specific features.

The white video monitor provides live viewing of door stations, supports floor calls, and features the professional Studio/Trade function for automatic door opening. Its embedded Linux operating system, coupled with a 32 MB ROM and 128 MB RAM, ensures stable and reliable performance.

Characteristics

System Settings

• Operating System: Embedded Linux
• ROM: 32 MB
• RAM: 128 MB
• Processor: Embedded Processor

Display Settings

• Screen Size: 7 inches
• Operation Method: Capacitive Touch Screen
• Type: Color TFT Screen
• Resolution: 1024 × 600

Video Settings

• Objective: /
• Field of View: /
• WDR: /
• Resolution: /
• Focal Length: /

Audio Settings

• Audio Compression Standard: G.711 U, G.711 A
• Audio Input: 1 built-in omnidirectional microphone
• Audio Output: 1 built-in speaker
• Audio Compression Rate: 64 Kbps
• Audio Quality: Noise Cancellation and Echo Cancellation
• Volume Adjustment: Adjustable

Capacity

• Event Capacity: 200 images captured (with TF card)
• Capacity of Linked Interior Extensions: 3

Network Settings

• Communication Protocol: TCP/IP, RTSP
• Wired Network: 10/100 Mbps self-adaptive via 2-wire interface

Device Interfaces

• Alarm Input: 1
• TAMPER: /
• RS-485:/
• USB: /
• TF Card: Max 128GB, SD 2.0 or lower
• Alarm Output: /
• DIP switch: 5 decimal DIP switch and 4 binary DIP switch
• Power Input: 12V DC
• Two-Wire IP Interface: 2, 1 for input 1 for output

General

• Buttons: 3 touch buttons (Answer, Unlock, Hang up) + 1 physical button (Reset)
• Mounting: Surface mount
• Indicators: 3 (Power, Quiet, In use)
• Weight: With Packaging: g ( lbs), Without Packaging: g ( lbs)
• Protection Level: /
• Operating Temperature:

-10 °C to 50 °C (14 °F to 122 °F) Operating Humidity: 10% to 90% (non-condensing) Dimensions: 190.2 mm × 138.2 mm × 20 mm (7.5" × 5.4" × 0.8") Battery: / Power Supply: 48V, Powered by DS-KAD7060EY or DS-KAD7061EY Application Environment: Indoor Power Consumption: ≤ 4W (Standby ≤ 1W) Language: English, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Spanish, Romanian, Estonian, Croatian, Slovenian, Serbian, Ukrainian, Portuguese
